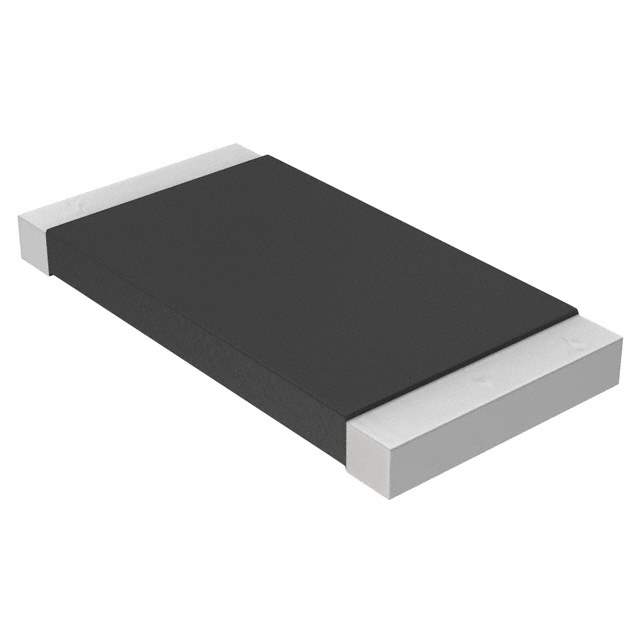

Same model may have multiple batches, images only for reference.

WSL2512R0200FEA

Name: WSL2512R0200FEA
Brand: Vishay
SKU: 403325
Availability: InStock
Rating: 4.85 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	WSL2512R0200FEA
Manufacturer	Vishay
Catalog	Chip Resistor - Surface Mount
Description	Res Metal Strip 2512 0.02 Ohm 1% 1W ±75ppm/°C Sulfur Resistant Pad SMD Automotive T/R / RES SMD 0.02 OHM 1% 1W 2512
Datasheet	WSL2512R0200FEA Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Resistors
Manufacturer	Vishay
Packaging	Reel - TR
Status	Active
Resistance (Ohms)	0.02
Tolerance	±1%
Power (Watts)	1W
Composition	Metal Element
Features	Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient	±75ppm/°C
Temperature Range - Operating	-65°C to 170°C
Case / Package	2512
Height - Seated (Max)	0.035" (0.89mm)
Number of Terminations	2
Win Source Part Number	036538-WSL2512R0200FEA
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Application Field	Used in Industrial, Power Management, Sensing & Instrumentation, Signal Processing, Automotive
Family Name	WSL
Introduction Date	August 11, 2004
ECCN	EAR99
Country of Origin	Israel, Mexico, United States of America
Halogen Free	Compliant
Estimated EOL Date	2028
Ultra Librarian 3D Model	Ultra Librarian WSL2512R0200FEA CAD Model

Alternative Products

Description

This Vishay resistor is part of the WSL family and has a power of 1W and a resistance of 0.02 ohms.

Power: 1W
Resistance: 0.02 ohms
Composition: metal element
Tolerance: ±1%
Temperature Coefficient: ±75ppm/°C
Moisture-Resistant: Yes
Pulse Withstanding: Yes
Ideal For: industrial, power management, sensing & instrumentation, signal processing, and automotive applications
Supply and Demand Status: balanced
Halogen-Free Compliant: Yes
