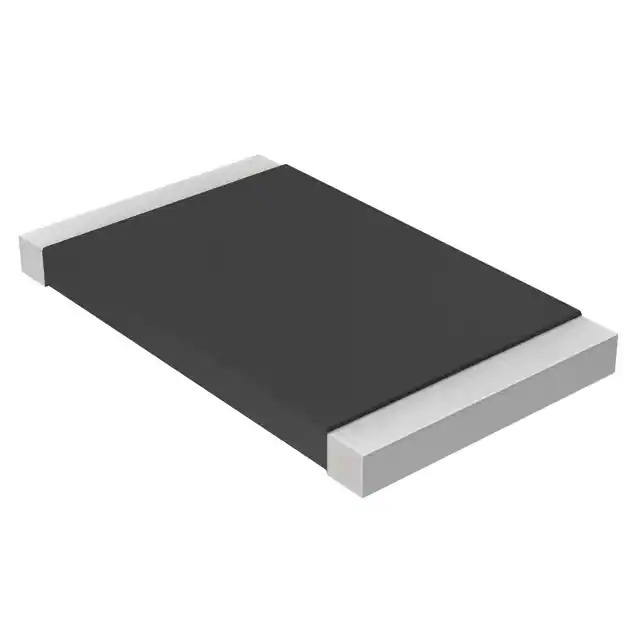

Same model may have multiple batches, images only for reference.
WSL2816R0150FEH Vishay
Same model may have multiple batches, images only for reference.

WSL2816R0150FEH

Part No WSL2816R0150FEH
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.015 OHM 1% 2W 2816
Datasheet
WSL2816R0150FEH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Vishay Dale
Series WSL
Package Tape & Reel
Product Status Active
Resistance 15 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Metal Element
Features Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding
Temperature Coefficient ±75ppm/°C
Temperature Range - Operating -65°C ~ 170°C
Package / Case Nonstandard
Supplier Device Package 2816
Ratings AEC-Q200
Size / Dimension 0.280" L x 0.165" W (7.10mm x 4.20mm)
Height - Seated (Max) 0.035" (0.89mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375570-WSL2816R0150FEH
Ultra Librarian 3D Model Ultra Librarian WSL2816R0150FEH CAD Model

Description

The WSL2816R0150FEH is a chip resistor designed for surface mount applications. It has a temperature range of -65°C to 170°C and a resistance of 15 mOhms with a tolerance of ±1%.

  • Power Rating: 2W
  • Temperature Coefficient: ±75ppm/°C
  • Series: WSL
  • Packaging: Tape and Reel
  • Anti-Sulfur Coating: Yes
  • Automotive AEC-Q200: Qualification
  • Moisture Resistance: Yes
  • Pulse Withstanding: Yes
  • Package/Case Size: 0.280" L x 0.165" W (7.10mm x 4.20mm)
  • Seated Height: 0.035" (0.89mm)
  • ECCN: Compliant
