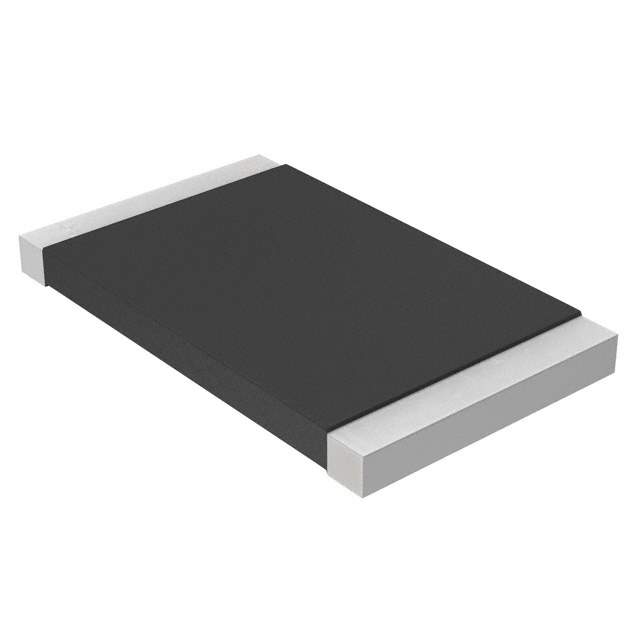

WSL2816R1000FEH Real Image
Same model may have multiple batches, images only for reference.

WSL2816R1000FEH

Part No WSL2816R1000FEH
Manufacturer Vishay
Catalog Chip Resistor - Surface Mount
Description RES 0.1 OHM 1% 2W 2816
Datasheet
WSL2816R1000FEH Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Resistors
Estimated Pruduction Lead Time 51 Weeks
Features 100 mOhms ±1% 2W Chip Resistor Nonstandard Anti-Sulfur, Automotive AEC-Q200, Current Sense, Moisture Resistant, Pulse Withstanding Metal Element
Manufacturer Vishay
Series WSL
Package Reel - TR
Operating Temperature Range -65°C ~ 170°C
Package Nonstandard
Case / Package 2816
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8533.21.0030
Other Part Number WSL2816R1000FEA, WSLK-.1TR, WSLK-.1DKR, WSLK-.1CT
Quantity per package 2000
Popularity High
Supply and Demand Status Balance
Win Source Part Number 903407-WSL2816R1000FEH
Ultra Librarian 3D Model Ultra Librarian WSL2816R1000FEH CAD Model

Description

The Vishay WSL2816R1000FEH is a nonstandard 2816 chip resistor with a resistance of 100 mOhms ±1% and a power rating of 2W.

  • Features: Metal element, pulse withstanding, moisture-resistant, anti-sulfur, and automotive AEC-Q200
  • Series: Vishay WSL series
  • Packaging: Reel
  • Type: Surface-mount device (SMD) resistor
  • Quantity per Package: 2000
  • Estimated Production Lead Time: 51 weeks
  • Compliance: RoHS-compliant and halogen-free
