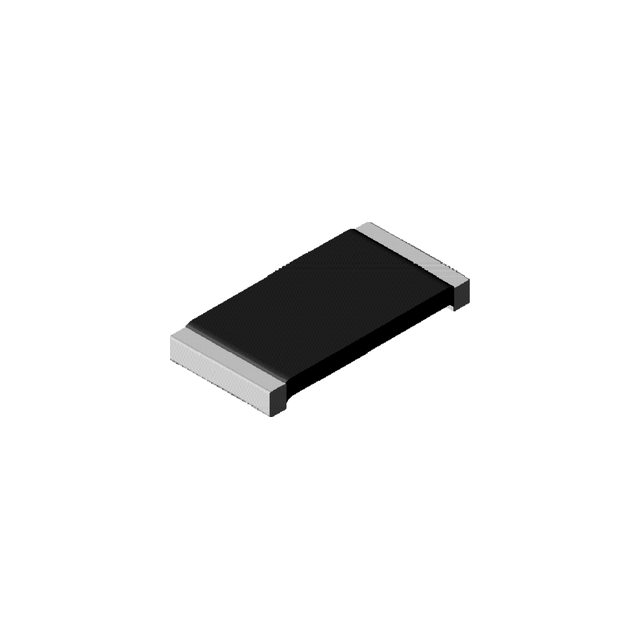

The WSLP1206R0100FEA is a Power Metal Strip® resistor manufactured by Vishay. It is designed for current sensing, voltage division, and pulse applications, especially in circuits requiring a small footprint and high power handling capabilities.

Applications

• Power Supplies: Used for current sensing in power supply circuits.
• Motor Control: Employed in motor control systems for precise current measurement.
• Automotive Electronics: Utilized in automotive applications, including ECUs and battery management systems.
• Portable Devices: Suitable for battery management in smartphones, tablets, and other portable electronics due to its small size.
• High-Current Applications: Ideal for applications requiring accurate current measurement at high current levels with limited board space.

Features

• Power Metal Strip® Construction: Enables high power handling capability and low resistance values in a small package.
• Low Resistance Value: Offers a low resistance value (0.01 ohms), allowing for precise current sensing with minimal impact on the circuit.
• High Power Rating: Designed to handle relatively high power levels for its size.
• Low Inductance: Minimizes inductance, reducing voltage spikes and improving circuit stability.
• Small Size: The 1206 package provides a very small footprint for space-constrained applications.

Benefits

• Accurate Current Sensing: Allows for precise current measurement, enabling accurate control and monitoring of circuits.
• Efficient Power Handling: Provides efficient power handling, minimizing power loss.
• Stable Performance: Offers stable performance over a wide temperature range.
• Compact Footprint: The small 1206 package saves valuable board space.
• RoHS Compliant: Meets environmental standards.

Additional Details

The WSLP1206R0100FEA has a resistance value of 0.01 ohms and a tolerance of 1%. It is available in a 1206 surface mount package. Constructed with a solid metal alloy resistance element, it offers a low TCR. Operates within a temperature range of -65°C to +170°C. The combination of small size and high power capabilities makes it an optimal choice for portable and space-constrained applications.
