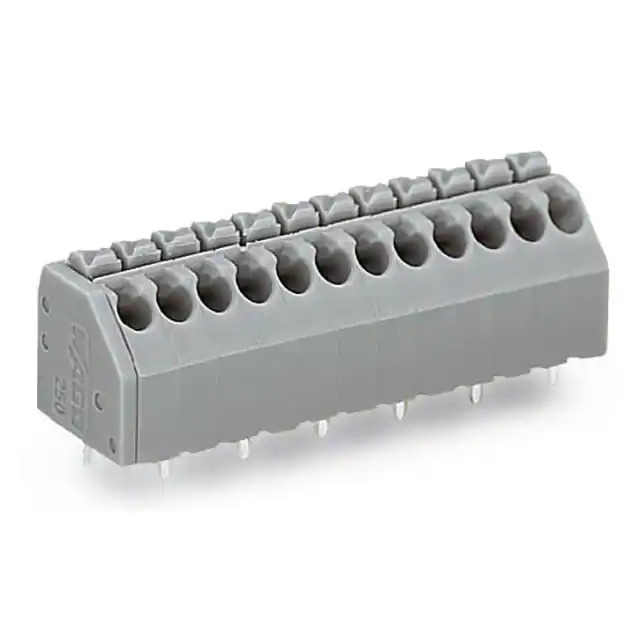

250-217

Name: 250-217
Brand: WAGO Corporation
SKU: 1363495
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	250-217
Manufacturer	WAGO Corporation
Catalog	Terminal Blocks
Description	PCB TERMINAL BLOCK; PUSH-BUTTON; / 17 Position Wire to Board Terminal Block 45° (135°) Angle with Board 0.138" (3.50mm) Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr	WAGO Corporation
Series	-
Package	Box
Product Status	Active
Number of Levels	1
Positions Per Level	17
Pitch	0.138" (3.50mm)
Mating Orientation	45° (135°) Angle with Board
Current	8 A
Voltage	300 V
Wire Gauge	16-24 AWG
Mounting Type	Through Hole
Wire Termination	Screwless - Push Button Clamp
Features	-
Color	Gray
Temperature Range - Operating	-60°C ~ 105°C
Housing Material	Polyamide (PA66), Nylon 6/6
Contact Material - Plating	Electrolytic Copper - Tin Plated
Clamp Material - Plating	Copper Alloy
Screw Material - Plating	-
Torque - Screw	-
Screw Thread	-
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1363495-250-217
Ultra Librarian 3D Model	Ultra Librarian 250-217 CAD Model

Alternative Products

Description

The WAGO Corporation wire to board terminal block is a through-hole mounting type connector with a pitch of 0.138" (3.50mm).

Mounting Type: Through-Hole
Pitch: 0.138" (3.50mm)
Housing Material: Polyamide (PA66) and Nylon 6/6
Contact Material: Electrolytic Copper with Tin Plating
Positions per Level: 17
Mating Orientation: 45° (135°) with the Board
Current Rating: 8A
Voltage Rating: 300V
