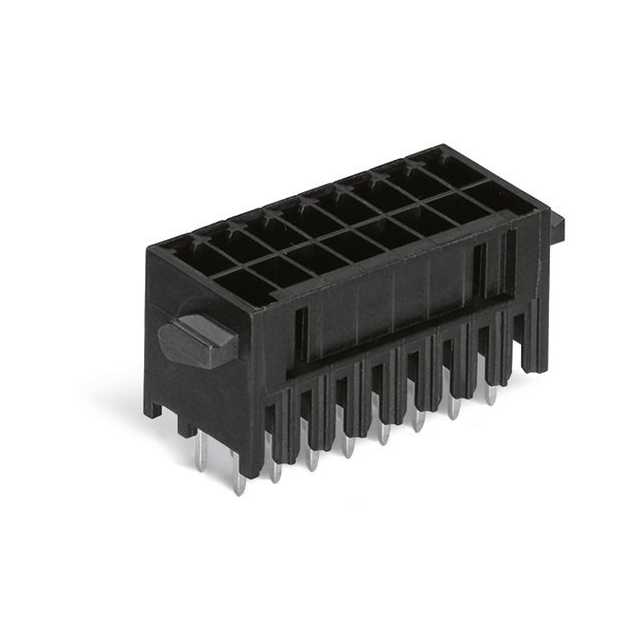

Same model may have multiple batches, images only for reference.

713-1405/116-000

Get a Quote

Part No	713-1405/116-000
Manufacturer	WAGO Corporation
Catalog	Headers, Plugs and Sockets
Description	THR MALE HEADER, 2-ROW; 0.8 X 0. / 10 Position Terminal Block Header, Male Pins, Shrouded (4 Side) 0.138" (3.50mm) Vertical Through Hole
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects - Terminal Blocks - Headers, Plugs and Sockets
Mfr	WAGO Corporation
Series	MCSMINI HD
Package	Box
Type	Header, Male Pins, Shrouded (4 Side)
Number of Positions	10
Positions Per Level	5
Number of Levels	2
Pitch	0.138" (3.50mm)
Header Orientation	Vertical
Termination Style	Solder
Mounting Type	Through Hole
Current - IEC	10A
Voltage - IEC	250 V
Current - UL	10 A
Voltage - UL	150 V
Color	Black
Temperature Range - Operating	-60°C ~ 100°C
Contact Mating Finish	Tin
Features	Locking Ramp
Material Flammability Rating	UL94 V-0
Contact Material	Electrolytic Copper
Housing Material	Polyphthalamide (PPA) , Glass Filled
Contact Tail Length	0.094" (2.40mm)
Insulation Height	0.531" (13.50mm)
Standard Package	1
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.90.4000
Win Source Part Number	1350284-713-1405/116-000
Ultra Librarian 3D Model	Ultra Librarian 713-1405/116-000 CAD Model

Alternative Products

Description

The 1350284-713-1405/116-000 is a male pin shrouded header from the MCSMINI HD series of terminal blocks. WAGO Corporation

Positions per Level: 10
Number of Levels: 5
Pitch: 0.138 inches
Orientation: Vertical
Locking Ramp: Yes
Current Rating: 10A
Voltage Rating: 250V
Termination Style: Solder
Contact Material: Electrolytic Copper
Housing Material: Polyphthalamide (PPA) and Glass-Filled
Material Flammability Rating: UL94 V-0
Package: Box
Standard Package: 1
Mounting Type: Through Hole
Insulation Height: 0.531 inches
Operating Temperature: -60°C to 100°C
