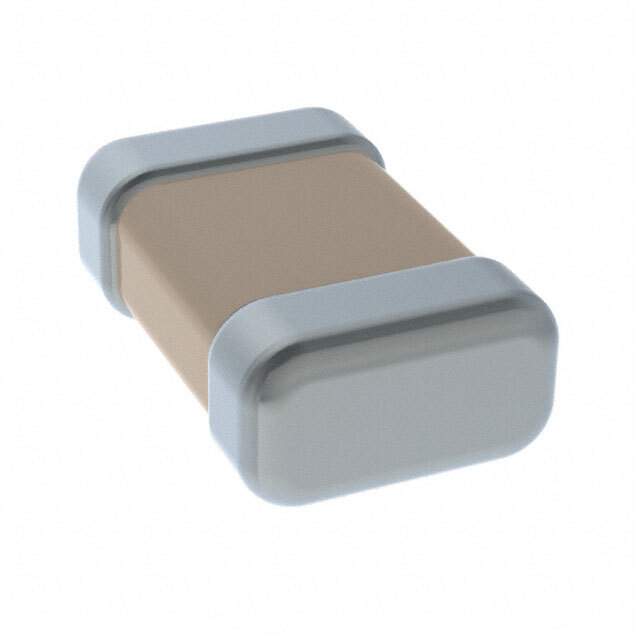

The 0805F103M500CT is a multilayer ceramic capacitor (MLCC) from Walsin Technology Corporation. It is a general-purpose capacitor designed for various electronic applications. It's commonly used for bypass, decoupling, and filtering due to its small size and stable performance.

Applications

• Bypass capacitors in digital circuits
• Decoupling capacitors in power supplies
• Filtering in audio circuits
• Timing circuits
• General-purpose use in various electronic devices

Features

• Multilayer Ceramic Capacitor (MLCC)
• 0805 Case Size (2.0mm x 1.25mm)
• 10nF (0.01µF) Capacitance
• 50V Voltage Rating
• X7R Dielectric Material

Benefits

• Reduces unwanted noise and voltage variations in digital circuits, ensuring stable operation.
• Minimizes noise and provides clean power to integrated circuits.
• Removes unwanted frequencies from audio signals, improving sound quality.
• Creates stable timing signals in electronic circuits.
• Offers a compact and reliable solution for general-purpose capacitance needs in various electronic devices.

Additional Details

This is a surface mount device (SMD), which means it's designed for automated assembly. The X7R dielectric provides stable performance across temperature variations commonly encountered in electronic equipment. Refer to the Walsin Technology datasheet for detailed specifications, including capacitance tolerance, temperature coefficient, and ESR (Equivalent Series Resistance).

Note: Always consult the official datasheet from Walsin Technology for the most accurate and up-to-date specifications and application guidelines.
