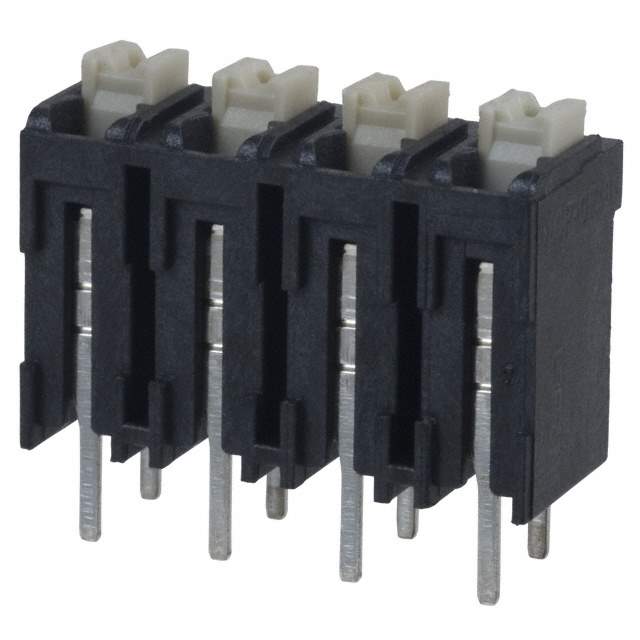

1826070000 Real Image
Same model may have multiple batches, images only for reference.

1826070000

Part No 1826070000
Manufacturer Weidmuller
Catalog Terminal Blocks
Description TERM BLK 4POS TOP ENT 5.08MM PCB / 4 Position Wire to Board Terminal Block Vertical with Board 0.200" (5.08mm) Through Hole
Datasheet
1826070000 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Terminal Blocks - Wire to Board
Mfr Weidmüller
Series Omnimate LSF-SMT
Package Tube
Number of Levels 1
Positions Per Level 4
Pitch 0.200" (5.08mm)
Mating Orientation Vertical with Board
Current 12 A
Voltage 300 V
Wire Gauge 16-24 AWG
Mounting Type Through Hole
Wire Termination Screwless - Push Button Clamp
Color Black
Temperature Range - Operating -50°C ~ 240°C
Housing Material Liquid Crystal Polymer (LCP) , Glass Filled
Contact Material - Plating Copper Alloy - Tin Plated
Standard Package 28
MSL Level Not Applicable
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1342163-1826070000
Ultra Librarian 3D Model Ultra Librarian 1826070000 CAD Model

Description

The 1342163-1826070000 is a connector that belongs to the Omnimate LSF-SMT series of terminal blocks.

  • Series: Omnimate LSF-SMT
  • Pitch: 0.200" (5.08mm)
  • Positions Per Level: 4
  • Mounting Type: through-hole
  • Voltage Rating: 300V
  • Wire Gauge: 16-24 AWG
  • Current Rating: 12A
  • Housing Material: liquid crystal polymer (LCP) and is glass-filled
  • Color: black
  • Package: tube
  • Wire Termination: screwless push-button clamp
  • Mating Orientation: vertically with the board
  • Operating Temperature Range: -50°C to 240°C
