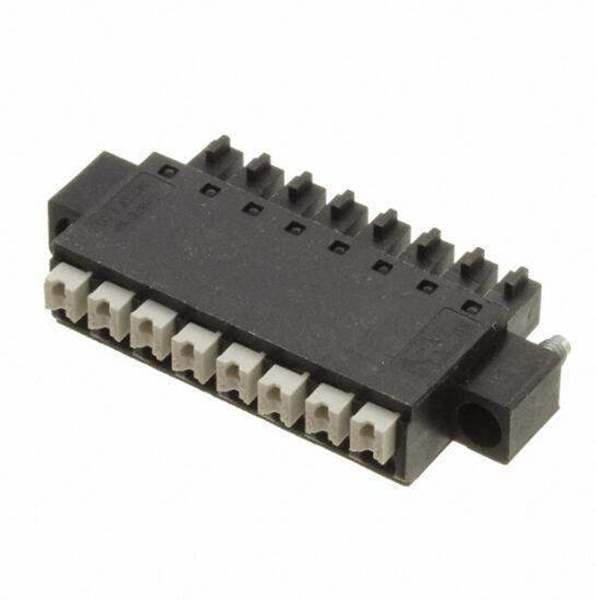

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Weidmüller
Category Connectors, Interconnects Terminal Blocks Headers, Plugs and Sockets
Package Bulk
Product Status Active
Type Plug, Female Sockets
Pitch 0.150" (3.81mm)
Termination Style Screwless - Leg Spring, Push-In Spring
Mounting Type Free Hanging (In-Line)
Current - IEC 17.5A
Voltage - IEC 320 V
Win Source Part Number WS1206775-1971830000
Ultra Librarian 3D Model Ultra Librarian 1971830000 CAD Model

Description

PUSH IN - Weidmüller's innovative connection system simplifies the wire connection process. The benefits for users and applications: • High packaging density due to very low component height. Simply insert the prepared wire - finished   • High component density with the compact SCDN / SCDN-THR two-tier pin header<br /> • Simplified processing due to integrated push buttons for opening the clamping unit • Intuitive handling – since the wire-entry area and handling area are clearly separated • tool-free locking and releasing when using Weidmüller's patented release latch (LR)
