The W25Q16DWUUIG is a 16 Mbit Serial Flash Memory device from Winbond Electronics. It features advanced security features, high performance, and low power consumption making it suitable for a variety of embedded systems applications.

Applications:

• Embedded systems
• Consumer electronics
• Internet of Things (IoT) devices
• Wearable devices
• Data storage
• Boot code storage

Features:

• Memory Size: 16 Mbit (2MB)
• Interface: Serial Peripheral Interface (SPI)
• Clock Speed: Up to 104MHz
• Supply Voltage: 2.7V to 3.6V
• Security: Block protection, One-Time Programmable (OTP) memory
• Erase Capability: Sector Erase, Block Erase, Chip Erase
• Write Protection: Hardware and software write protection

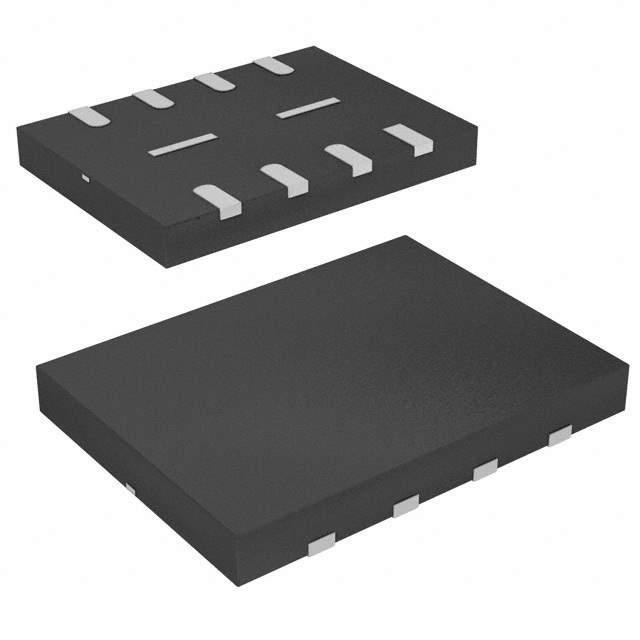

• Package: USON 8-pin
• Operating Temperature: -40°C to +85°C

Benefits:

• High Performance: Offers fast read/write speeds due to its SPI interface and high clock speed.
• Security: Integrated security features ensure data integrity and prevent unauthorized access.
• Low Power Consumption: Consumes minimal power, extending battery life in portable devices.
• Compact Size: Small USON package allows for space-saving design.
• Reliable Storage: Provides reliable non-volatile storage for code and data.

Technical Specifications:

The W25Q16DWUUIG operates with a supply voltage range of 2.7V to 3.6V. Its typical standby current is very low, enhancing battery life. The device supports various SPI modes. Refer to the Winbond datasheet for detailed electrical characteristics, timing diagrams, and package dimensions.
