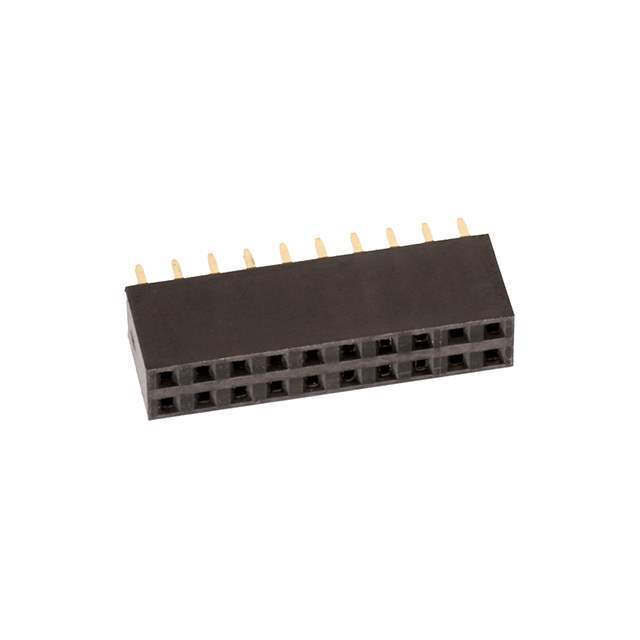

Same model may have multiple batches, images only for reference.
61302021821 Würth Elektronik
Same model may have multiple batches, images only for reference.

61302021821

Part No 61302021821
Manufacturer Wurth Electronics Inc
Catalog Rectangular Connectors
Description WR-PHD 2.54 MM DUAL SOCKET HEADE
Datasheet
61302021821 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202475-61302021821
Manufacturer Würth Elektronik
Category Connectors, Interconnects -Rectangular Connectors- Headers, Receptacles, Female Sockets
Series WR-PHD
Package Tray
Product Status Active
Connector Type Receptacle
Contact Type Forked
Style Board to Board
Number of Positions 20
Insulation Material Polybutylene Terephthalate (PBT)
Ultra Librarian 3D Model Ultra Librarian 61302021821 CAD Model

Description

The 1202475 is a receptacle connector from the WR-PHD series manufactured by Würth Elektronik.

  • Contact Type: Forked
  • Connection Type: Board-to-Board
  • Positions: 20
  • Insulation Material: Polybutylene Terephthalate (PBT)
  • Status: Active
  • Packaging: Tray
