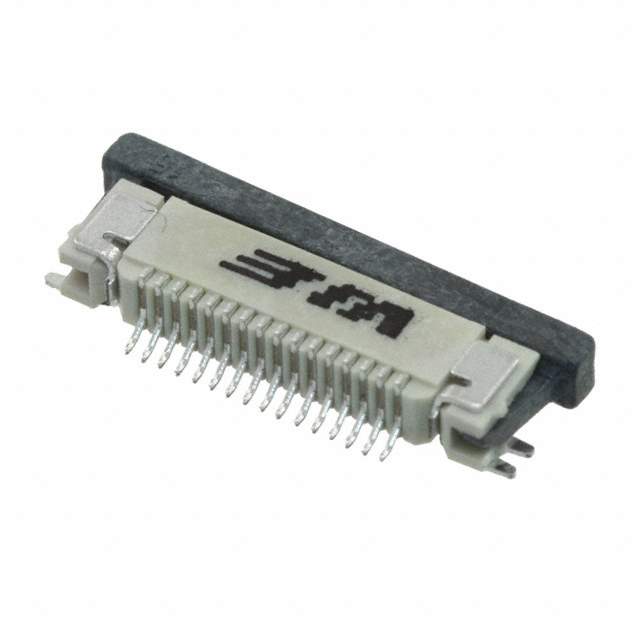

68711614522 Real Image
Same model may have multiple batches, images only for reference.

68711614522

Part No 68711614522
Manufacturer Wurth Electronics Inc
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FPC BOTTOM 16POS 0.50MM R/A
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Würth Elektronik
Packaging Reel
Flat Flex Type FPC
Mounting Style Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 16
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Slide Lock
Cable End Type Tapered
Contact Material Phosphor Bronze
Contact Finish Tin
Housing Material Liquid Crystal Polymer (LCP)
Actuator Material Liquid Crystal Polymer (LCP)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Temperature Range - Operating -25°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 0.5A
Contact Finish Thickness 100.0μin (2.54μm)
Housing Color Ivory
Actuator Color Black
Mating Cycles 25
Manufacturer Pack Quantity 2,000
MSL Level 1 (Unlimited)
Popularity High
Supply and Demand Status Balance
Win Source Part Number 802474-68711614522
Ultra Librarian 3D Model Ultra Librarian 68711614522 CAD Model

Description

The 802474-68711614522 is a Zero Insertion Force (ZIF) connector with 16 positions from Würth Elektronik.

  • Mounting: Surface Mount
  • Angle: Right Angle
  • Pitch: 0.020" (0.50mm)
  • Contact Material: Phosphor Bronze
  • Contact Finish: Tin
  • Contact Finish Thickness: 100.0μin (2.54μm)
  • Voltage Rating: 50V
  • Height Above Board: 0.079" (2.00mm)
  • FPC Type: Flat Flex
  • FPC Thickness: 0.30mm
  • Housing Material: Liquid Crystal Polymer (LCP)
  • Actuator Material: Liquid Crystal Polymer (LCP)
  • Flammability Rating: UL94 V-0
  • Connector/Contact Type: Contacts, Bottom
  • FFC/FCB Thickness: 0.30mm
  • Locking Feature: Slide Lock
  • Cable End Type: Tapered
  • Mating Cycles: 25
  • Operating Temperature Range: -25°C to 85°C
  • Packaging: Reel
  • Manufacturer Pack Quantity: 2,000
  • MSL Level: 1 (Unlimited)
  • Current Rating: 0.5A
