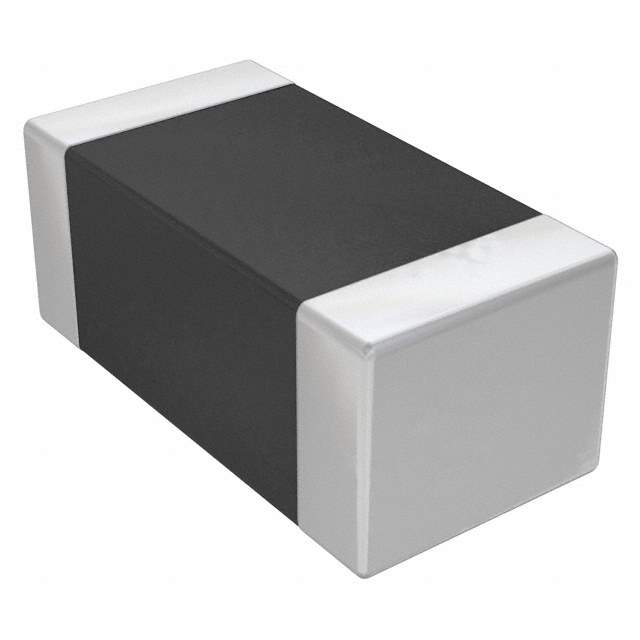

742792113 Real Image
Same model may have multiple batches, images only for reference.

742792113

Part No 742792113
Manufacturer Wurth Electronics Inc
Catalog Ferrite Beads and Chips
Description FERRITE BEAD 120 OHM 1206 1LN
Datasheet
742792113 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Filters - Ferrite Beads and Chips
Mfr Wurth Electronics Inc
Series WE-CBF
Package Tape & Reel
Product Status Active
Filter Type Signal Line
Number of Lines 1
Impedance @ Frequency 120 Ohms @ 100 MHz
Current Rating (Max) 3A
DC Resistance (DCR) (Max) 30mOhm
Temperature Range - Operating -55°C ~ 125°C
Package / Case 1206 (3216 Metric)
Mounting Type Surface Mount
Height (Max) 0.051" (1.30mm)
Size / Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Standard Package 3,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8548.00.0000
Win Source Part Number 1125792-742792113
Ultra Librarian 3D Model Ultra Librarian 742792113 CAD Model

Description

The WE-CBF series from Wurth Electronics Inc is a ferrite bead chip designed for signal line filtering.

  • Series: WE-CBF
  • Size: 0.126" L x 0.063" W (3.20mm x 1.60mm)
  • Maximum Current: 3A
  • Impedance: 120 Ohms @ 100 MHz
  • Mounting: Surface Mountable
  • Package: 1206 (3216 Metric)
  • Operating Temperature: -55°C to 125°C
  • Standard Package: 3,000 pcs
