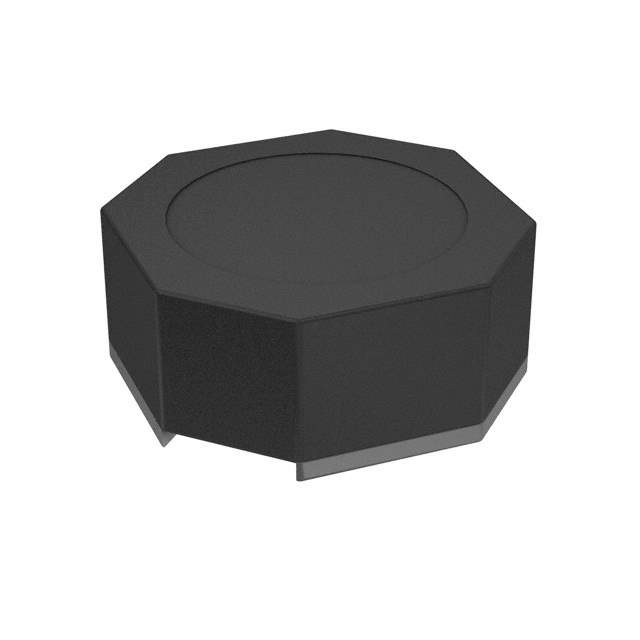

744028100

Part No 744028100
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 10UH 600MA 670MOHM SMD
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Obsolete
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 10 µH
Tolerance ±30%
Current Rating (Amps) 600 mA
Current - Saturation (Isat) 450mA
Shielding Shielded
DC Resistance (DCR) 670mOhm Max
Frequency - Self Resonant 45MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Supplier Device Package 2828
Size / Dimension 0.110" L x 0.110" W (2.80mm x 2.80mm)
Height - Seated (Max) 0.047" (1.20mm)
Standard Package 1,500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857204-744028100

Description

The WE-TPC is a compact and reliable drum core, wirewound inductor designed for surface mount applications. With a size of 0.110" L x 0.110" W (2.80mm x 2.80mm), it is suitable for space-constrained designs. The inductance value of 10 µH ensures efficient energy storage and transfer. The WE-TPC has a maximum seated height of 0.047" (1.20mm) and a DC resistance (DCR) of 670mOhm max. It can handle a current rating of 600 mA and has a saturation current (Isat) of 450mA. The operating temperature range is from -40°C to 125°C, making it suitable for a wide range of environments. Although the WE-TPC is now obsolete, it has been widely used in various electronic applications due to its reliable performance and compact design.
