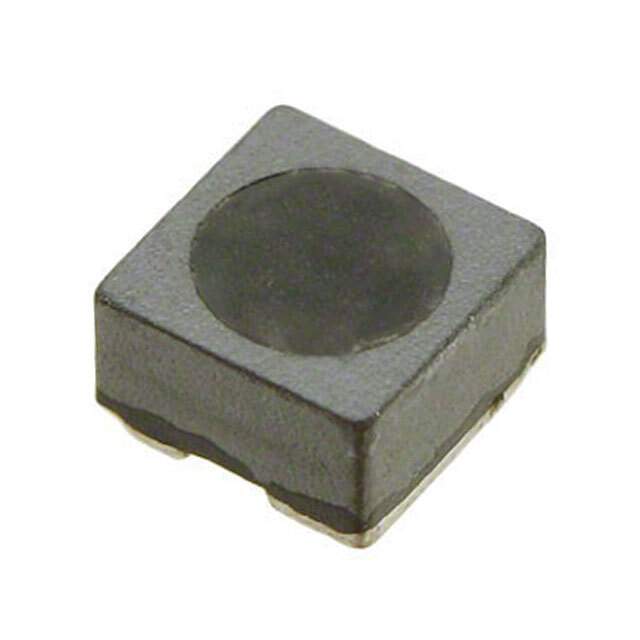

Same model may have multiple batches, images only for reference.

744043150

Name: 744043150
Brand: Wurth Electronics Inc
SKU: 1327688
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	744043150
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 15UH 1.03A 150MOHM SMD / 15 µH Shielded Drum Core, Wirewound Inductor 1.03 A 150mOhm Max 1919 (4848 Metric)
Datasheet	744043150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±30%
Current Rating (Amps)	1.03 A
Current - Saturation (Isat)	750mA
Shielding	Shielded
DC Resistance (DCR)	150mOhm Max
Frequency - Self Resonant	25MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	1919 (4848 Metric)
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1105-2,732-1105-1,732-1105-6
Standard Package	500
Win Source Part Number	1327688-744043150
Ultra Librarian 3D Model	Ultra Librarian 744043150 CAD Model

Alternative Products

Description

The Würth Elektronik 744043150 fixed inductor is a surface mount device with a drum core and wirewound type.

Shielding: Yes
Inductance: 15µH
Tolerance: ±30%
DC Resistance: 150mOhm maximum
Current Rating: 1.03A
Package Size: 1919
Seated Height: 0.118 inches
Packaging: Reel (500 pieces)
Material: Ferrite
Temperature Range: -40°C to 125°C
