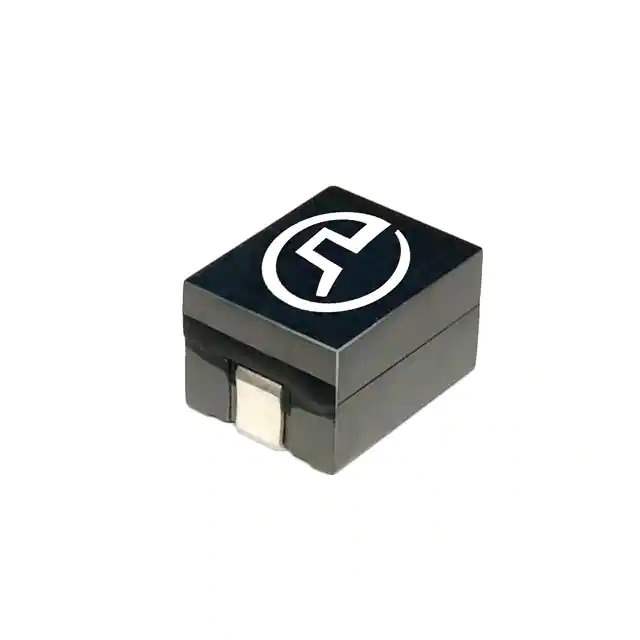

Same model may have multiple batches, images only for reference.

PA2202.321NLT

Name: PA2202.321NLT
Brand: Pulse
SKU: 888512
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	PA2202.321NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 325NH 31A 0.48MOHM SMD / 325 nH Unshielded Inductor 31 A 0.48mOhm Nonstandard
Datasheet	PA2202.321NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	PA2202.XXXNL
Package	Tape & Reel
Product Status	Active
Inductance	325 nH
Tolerance	±15%
Current Rating (Amps)	31 A
Current - Saturation (Isat)	34A
Shielding	Unshielded
DC Resistance (DCR)	0.48mOhm
Temperature Range - Operating	-40°C ~ 130°C
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.476" L x 0.394" W (12.10mm x 10.00mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	600 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	888512-PA2202.321NLT
Ultra Librarian 3D Model	Ultra Librarian PA2202.321NLT CAD Model

Alternative Products

Description

The 888512-PA2202.321NLT is a fixed inductor from Pulse.

Series: PA2202.XXXNL
Inductance: 325nH
Inductor Type: Unshielded
Package: Tape & Reel
Size: 0.476" L x 0.394" W (12.10mm x 10.00mm)
Temperature Range: -40°C to 130°C
Current Rating: 31A
DC Resistance (DCR): 0.48mOhm
Category: Inductors, Coils, Chokes - Fixed Inductors
Product Status: Active
