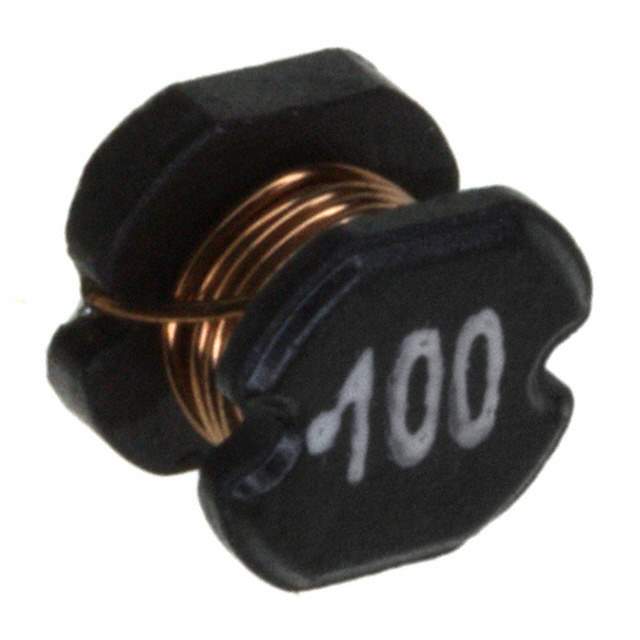

Same model may have multiple batches, images only for reference.

74477410

Name: 74477410
Brand: Wurth Electronics Inc
SKU: 857551
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74477410
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10UH 2.2A 100 MOHM SMD
Datasheet	74477410 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD2
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	10 µH
Tolerance	±20%
Current Rating (Amps)	2.2 A
Current - Saturation (Isat)	2.5A
Shielding	Unshielded
DC Resistance (DCR)	100mOhm Max
Frequency - Self Resonant	26MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.228" L x 0.205" W (5.80mm x 5.20mm)
Height - Seated (Max)	0.191" (4.85mm)
Standard Package	1,500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857551-74477410
Ultra Librarian 3D Model	Ultra Librarian 74477410 CAD Model

Alternative Products

Description

The WE-PD2 is a drum core, wirewound inductor designed for use in electronic circuits.

Size: 0.228" L x 0.205" W (5.80mm x 5.20mm)
Mounting Type: Surface mount
Inductance: 10 µH
Maximum Seated Height: 0.191" (4.85mm)
DC Resistance (DCR): 100mOhm max
Current Rating: 2.2 A
Saturation Current (Isat): 2.5A
Operating Temperature Range: -40°C to 125°C
Core Material: Ferrite
Packaging: Tape & reel
