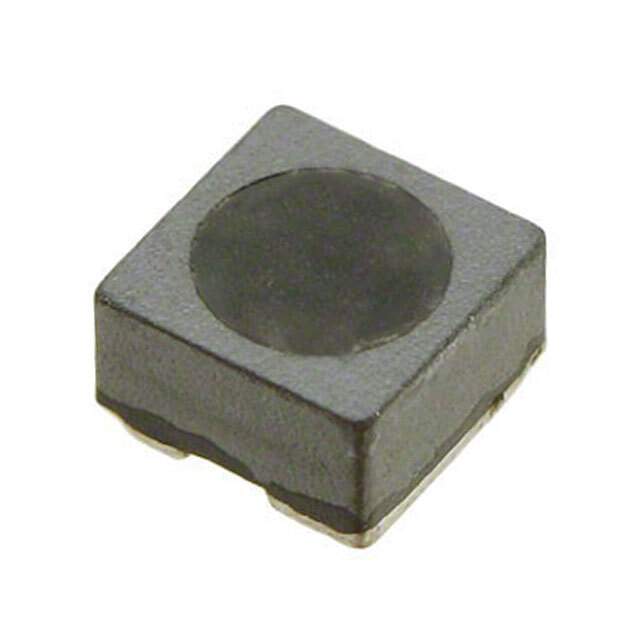

Same model may have multiple batches, images only for reference.

744043330

Name: 744043330
Brand: Wurth Electronics Inc
SKU: 1327573
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744043330
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 33UH 820MA 230MOHM SMD / 33 µH Shielded Drum Core, Wirewound Inductor 820 mA 230mOhm Max 1919 (4848 Metric)
Datasheet	744043330 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	33 µH
Tolerance	±30%
Current Rating (Amps)	820 mA
Current - Saturation (Isat)	550mA
Shielding	Shielded
DC Resistance (DCR)	230mOhm Max
Frequency - Self Resonant	16MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	1919 (4848 Metric)
Size / Dimension	0.189" L x 0.189" W (4.80mm x 4.80mm)
Height - Seated (Max)	0.118" (3.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1108-1,732-1108-2,732-1108-6
Standard Package	500
Win Source Part Number	1327573-744043330
Ultra Librarian 3D Model	Ultra Librarian 744043330 CAD Model

Alternative Products

Description

The Würth Elektronik 1327573-744043330 is a drum core, wirewound inductor with a shielding feature.

Standard Package: 500
Maximum Height: 0.118 inches
Inductance: 33 µH
Tolerance: ±30%
Core Material: Ferrite
DC Resistance (DCR): 230mOhm Max
Current Rating: 820mA
Saturation Current: 550mA
Temperature Range: -40°C to 125°C
