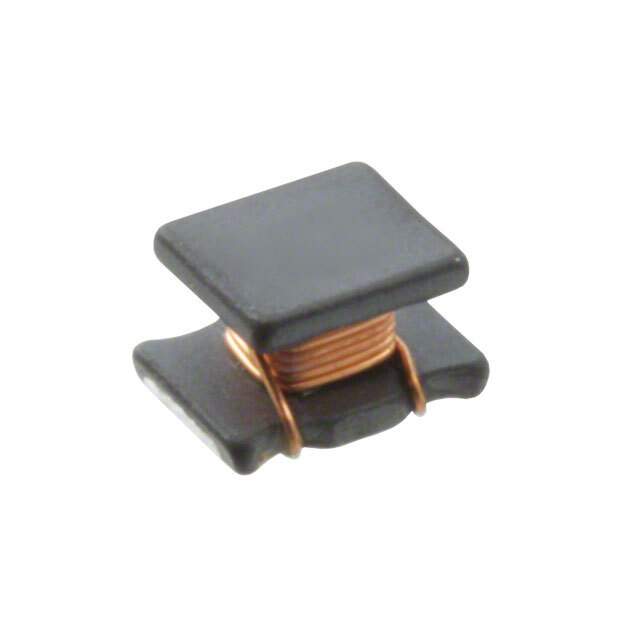

Same model may have multiple batches, images only for reference.

744045150

Name: 744045150
Brand: Wurth Electronics Inc
SKU: 857243
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744045150
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 15UH 730MA 500MOHM SMD
Datasheet	744045150 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LQ
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	15 µH
Tolerance	±20%
Current Rating (Amps)	730 mA
Current - Saturation (Isat)	1.24A
Shielding	Unshielded
DC Resistance (DCR)	500mOhm Max
Q @ Freq	45 @ 1MHz
Frequency - Self Resonant	26MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 MHz
Mounting Type	Surface Mount
Package / Case	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.114" (2.90mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857243-744045150
Ultra Librarian 3D Model	Ultra Librarian 744045150 CAD Model

Alternative Products

Description

The WE-LQ series from Wurth Electronics Inc is a drum core, wirewound inductor designed for various electronic applications.

Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
Inductance: 15 µH
Tolerance: ±20%
Maximum Seated Height: 0.114" (2.90mm)
DC Resistance (DCR): 500mOhm
Temperature Range: -40°C to 125°C
Mounting: Surface mount
Package: 1812 (4532 Metric)
Shielding: Unshielded
Material: Ferrite
Current Rating: 730 mA
Saturation Current (Isat): 1.24A
