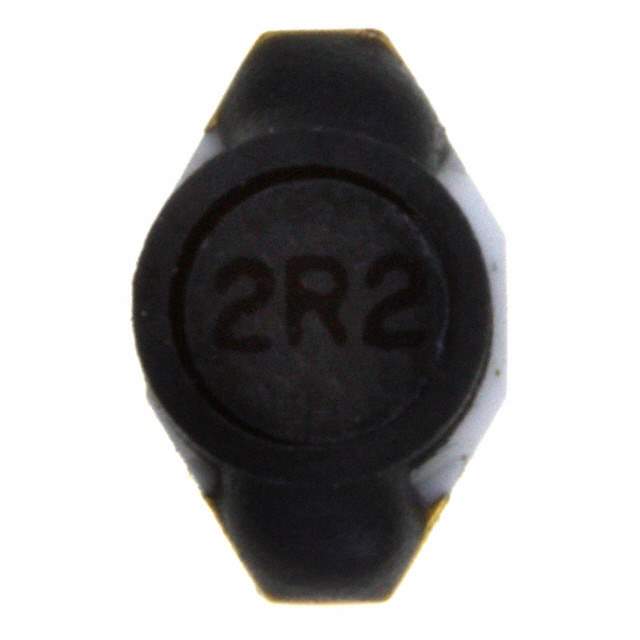

Same model may have multiple batches, images only for reference.

74451022

Name: 74451022
Brand: Wurth Electronics Inc
SKU: 857452
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	74451022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 1.8A 50 MOHM SMD
Datasheet	74451022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD3
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	2.2 µH
Tolerance	±20%
Current Rating (Amps)	1.8 A
Current - Saturation (Isat)	1.08A
Shielding	Shielded
DC Resistance (DCR)	50mOhm Max
Frequency - Self Resonant	65MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.260" L x 0.175" W (6.60mm x 4.45mm)
Height - Seated (Max)	0.118" (3.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857452-74451022
Ultra Librarian 3D Model	Ultra Librarian 74451022 CAD Model

Alternative Products

Description

The WE-PD3 series from Wurth Electronics Inc is a drum core, wirewound fixed inductor with a shielded design.

Size: 0.260" L x 0.175" W (6.60mm x 4.45mm)
Inductance: 2.2 µH
Seated Height: 0.118" (3.00mm)
Tolerance: ±20%
DC Resistance (DCR): 50mOhm Max
Temperature Range: -40°C to 125°C
Mounting Type: Surface Mount
Package: Nonstandard
Current Rating: 1.8 A
Current Saturation (Isat): 1.08A
