Same model may have multiple batches, images only for reference.

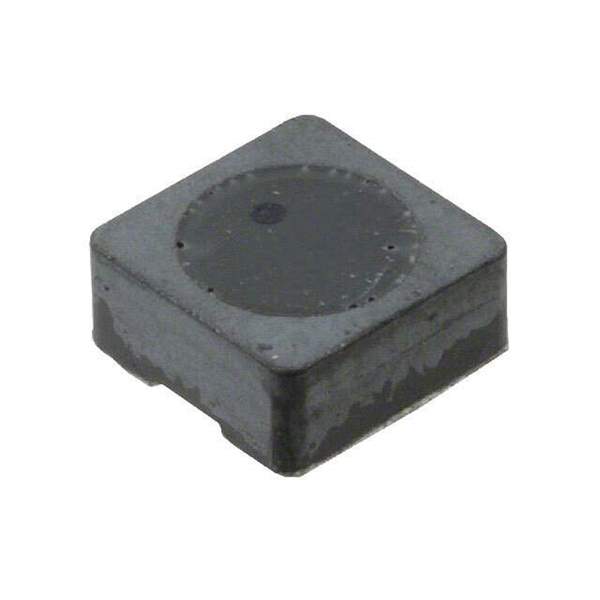

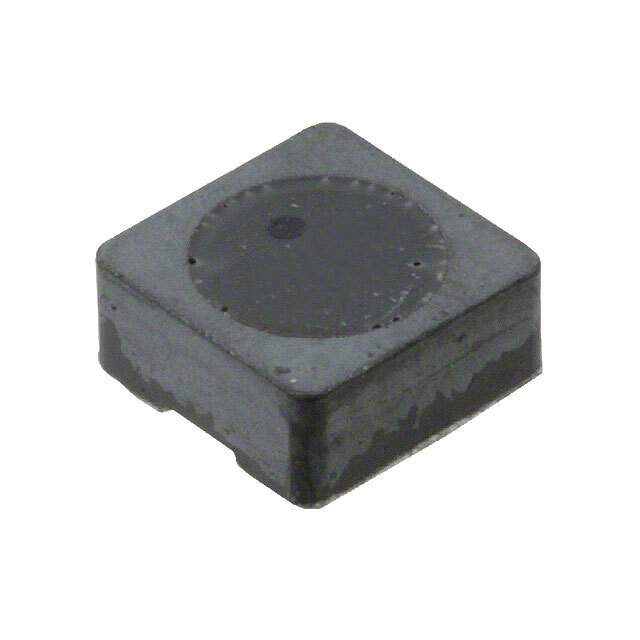

744053003 Real Image
Same model may have multiple batches, images only for reference.

744053003

Part No 744053003
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 3UH 2.8A 30 MOHM SMD
Datasheet
744053003 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-TPC
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 3 µH
Tolerance ±30%
Current Rating (Amps) 2.8 A
Current - Saturation (Isat) 2.5A
Shielding Shielded
DC Resistance (DCR) 30mOhm Max
Frequency - Self Resonant 70MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case 2323 (5858 Metric)
Size / Dimension 0.228" L x 0.228" W (5.80mm x 5.80mm)
Height - Seated (Max) 0.118" (3.00mm)
Standard Package 400 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857248-744053003
Ultra Librarian 3D Model Ultra Librarian 744053003 CAD Model

Description

The WE-TPC series is a drum core, wirewound type of fixed inductor offered by Wurth Electronics Inc.

  • Size: 0.228" L x 0.228" W (5.80mm x 5.80mm)
  • Height: 0.118" (3.00mm)
  • Inductance: 3 µH
  • Tolerance: ±30%
  • Shielding: Shielded
  • Mounting: Surface mount
  • DC Resistance (DCR): 30mOhm max
  • Current Rating: 2.8 A
  • Operating Temperature Range: -40°C to 125°C
