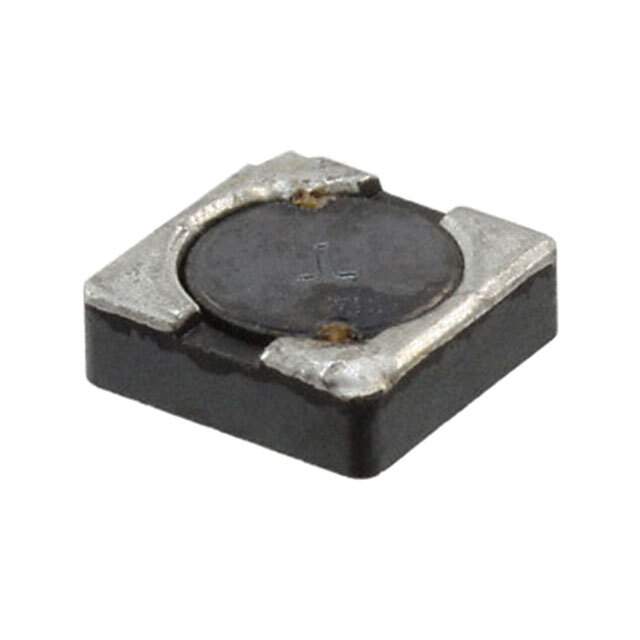

Same model may have multiple batches, images only for reference.

744062006

Name: 744062006
Brand: Wurth Electronics Inc
SKU: 1329260
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744062006
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.2UH 1.9A 54 MOHM SMD / 6.2 µH Shielded Drum Core, Wirewound Inductor 1.9 A 54mOhm Max 2727 (6868 Metric)
Datasheet	744062006 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	6.2 µH
Tolerance	±30%
Current Rating (Amps)	1.9 A
Current - Saturation (Isat)	1.8A
Shielding	Shielded
DC Resistance (DCR)	54mOhm Max
Frequency - Self Resonant	45MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	2727 (6868 Metric)
Size / Dimension	0.268" L x 0.268" W (6.80mm x 6.80mm)
Height - Seated (Max)	0.098" (2.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-3686-6,732-3686-1,732-3686-2
Standard Package	500
Win Source Part Number	1329260-744062006
Ultra Librarian 3D Model	Ultra Librarian 744062006 CAD Model

Alternative Products

Description

The Würth Elektronik 744062006 is a fixed inductor designed for surface mount applications.

Core: Drum Core, Wirewound
Shielding: Yes
Inductance: 6.2 µH
Tolerance: ±30%
Current Rating: 1.9 A
DC Resistance (DCR): 54mOhm Max
Size: 0.268” L x 0.268” W (6.80mm x 6.80mm)
Height: 0.098” (2.50mm)
Packaging: Reel
Standard Package: 500
Material: Ferrite
Self-Resonant Frequency: 45MHz
Operating Temperature: -40°C to 125°C
RoHS3 Compliant: Yes
ECCN: EAR99
