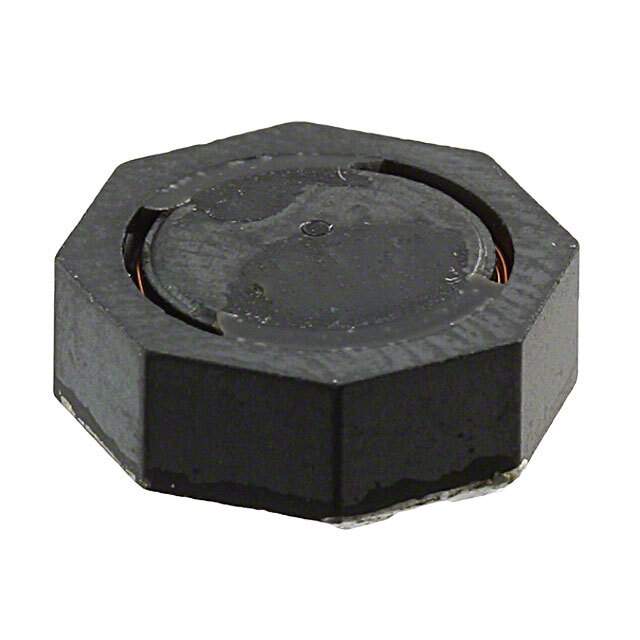

Same model may have multiple batches, images only for reference.

744066221

Name: 744066221
Brand: Wurth Electronics Inc
SKU: 857270
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744066221
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 220UH 750MA 740MOHM SM
Datasheet	744066221 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-TPC
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	220 µH
Tolerance	±30%
Current Rating (Amps)	750 mA
Current - Saturation (Isat)	850mA
Shielding	Shielded
DC Resistance (DCR)	740mOhm Max
Frequency - Self Resonant	6MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.161" (4.10mm)
Base Product Number	744066
Standard Package	800 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857270-744066221
Ultra Librarian 3D Model	Ultra Librarian 744066221 CAD Model

Alternative Products

Description

The WE-TPC series is a range of shielded fixed inductors designed for use in various electronic applications.

Core Type: Drum core, wirewound
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height: 0.161" (4.10mm)
Inductance: 220 µH
Maximum DC Resistance (DCR): 740mOhm
Tolerance: ±30%
Operating Temperature: -40°C to 125°C
Current Rating: 750mA
Self-Resonant Frequency: 6MHz
Package: Tape & Reel
Standard Package: 800 pieces
Material: Ferrite
Manufacturer: Wurth Electronics Inc.
Product Status: Active
