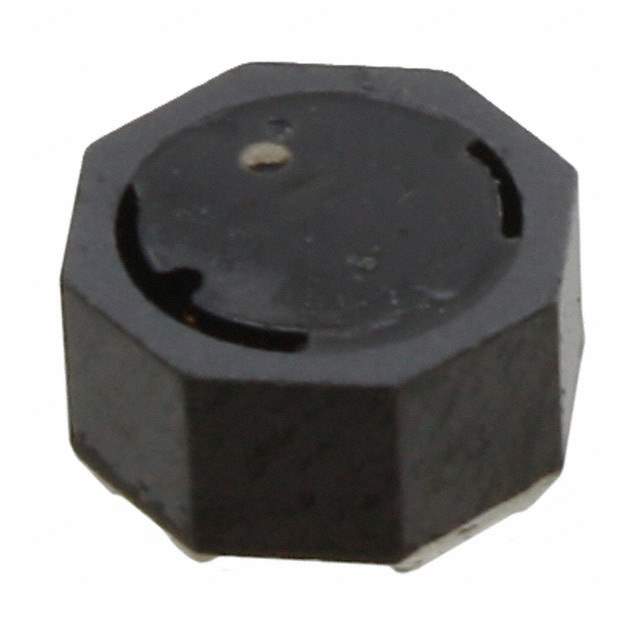

744071101 Real Image
Same model may have multiple batches, images only for reference.

744071101

Part No 744071101
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 100UH 1A 320 MOHM SMD / 100 µH Shielded Drum Core, Wirewound Inductor 1 A 320mOhm Max Nonstandard
Datasheet
744071101 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Fixed Inductors
Manufacturer Würth Elektronik
Packaging Reel - TR
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 100 µH
Tolerance ±30%
Current Rating (Amps) 1 A
Current - Saturation (Isat) 900mA
Shielding Shielded
DC Resistance (DCR) 320mOhm Max
Frequency - Self Resonant 6MHz
Temperature Range - Operating -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Surface Mount
Case / Package Nonstandard
Size / Dimension 0.315" L x 0.315" W (8.00mm x 8.00mm)
Height - Seated (Max) 0.181" (4.60mm)
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Other Part Number 732-3717-1,732-3717-2,732-3717-6
Standard Package 300
Win Source Part Number 1327550-744071101
Ultra Librarian 3D Model Ultra Librarian 744071101 CAD Model

Description

The Würth Elektronik inductor is a high-quality drum core wirewound inductor that is ideal for use in a variety of electronic applications.

  • Type: drum core wirewound
  • Shielding: shielded
  • Size: 0.315" L x 0.315" W (8.00mm x 8.00mm)
  • Height - Seated (Max): 0.181" (4.60mm)
  • Inductance: 100 µH
  • Tolerance: ±30%
  • Core Material: ferrite
  • DC Resistance: 320mOhm Max
  • Current Rating: 1 A
  • Saturation Current: 900mA
  • Temperature Range: -40°C ~ 125°C
  • Package Includes: 300 units
  • Mounting Type: surface mount
  • Frequency Range: 100 kHz
  • Self-Resonant Frequency: 6MHz
