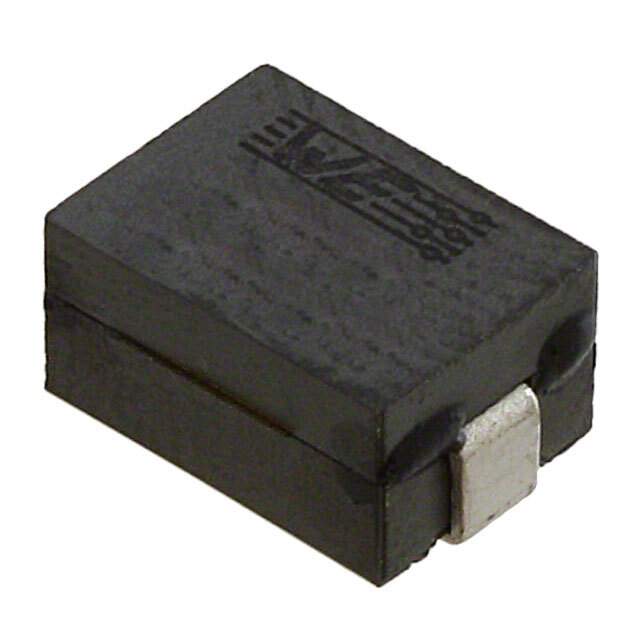

Same model may have multiple batches, images only for reference.

744303022

Name: 744303022
Brand: Wurth Electronics Inc
SKU: 857323
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744303022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 220NH 31A 0.325MOHM SM
Datasheet	744303022 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCM
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	220 nH
Tolerance	±20%
Current Rating (Amps)	31 A
Current - Saturation (Isat)	30A
Shielding	Shielded
DC Resistance (DCR)	0.325mOhm
Frequency - Self Resonant	80MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.402" L x 0.276" W (10.20mm x 7.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857323-744303022
Ultra Librarian 3D Model	Ultra Librarian 744303022 CAD Model

Alternative Products

Description

The 857323-744303022 is a fixed inductor from the WE-HCM series by Wurth Electronics Inc.

Type: Drum core, wirewound
Shielded: Yes
Package: Tape and reel
Size: 0.402" L x 0.276" W (10.20mm x 7.00mm)
Inductance: 220 nH
Height: 0.197" (5.00mm) (Maximum)
Tolerance: ±20%
DC Resistance (DCR): 0.325mOhm
Operating Temperature: -40°C to 125°C
Current Rating: 31A
Saturation Current: 30A
Product Status: Active
REACH Status: Unaffected
