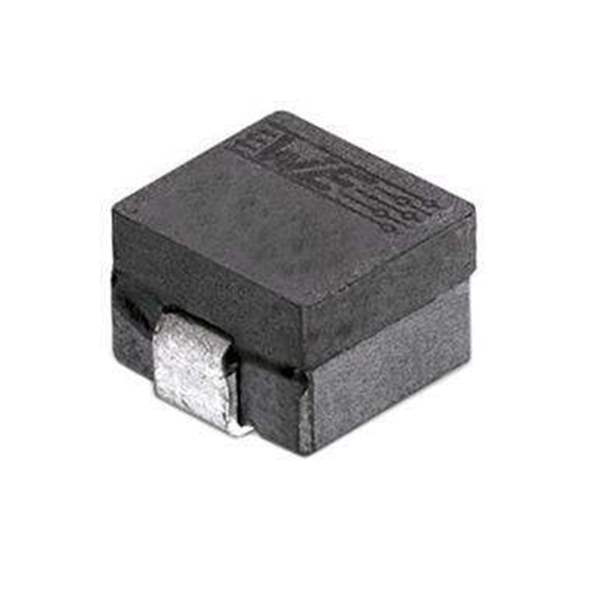

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Win Source Part Number Cross
Manufacturer Würth Elektronik
Category Inductors, Coils, Chokes Fixed Inductors
Product Status Active
Type Drum Core, Wirewound
Inductance 220 nH
Tolerance ±10%
Current - Saturation (Isat) 59.3A
Shielding Shielded
DC Resistance (DCR) 0.18mOhm
Operating Temperature -40°C ~ 125°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Win Source Part Number WS1210622-7443082022
Ultra Librarian 3D Model Ultra Librarian 7443082022 CAD Model

Description

220 nH Shielded Drum Core, Wirewound Inductor 60 A 0.18mOhm Nonstandard
