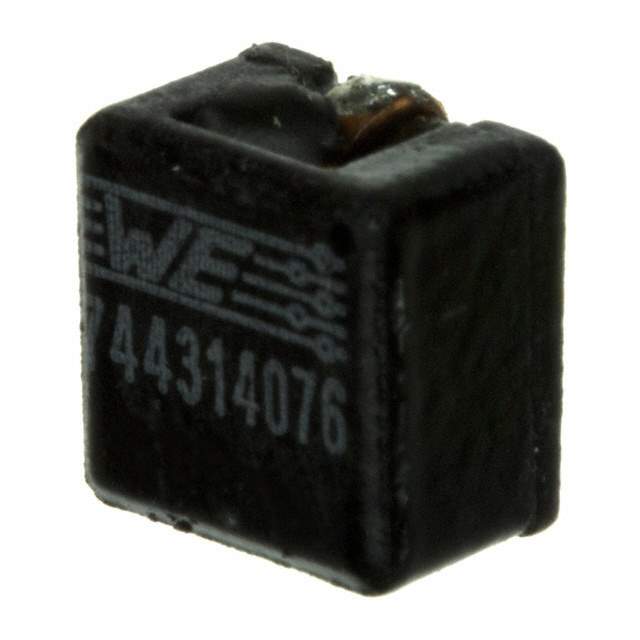

Same model may have multiple batches, images only for reference.

744314076

Name: 744314076
Brand: Wurth Electronics Inc
SKU: 857335
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744314076
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 760NH 15.5A 2.25 MOHM
Datasheet	744314076 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCI
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	760 nH
Tolerance	±20%
Current Rating (Amps)	15.5 A
Current - Saturation (Isat)	15A
Shielding	Shielded
DC Resistance (DCR)	2.25mOhm
Frequency - Self Resonant	200MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	7050
Size / Dimension	0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857335-744314076
Ultra Librarian 3D Model	Ultra Librarian 744314076 CAD Model

Alternative Products

Description

The WE-HCI series by Wurth Electronics Inc offers a high-quality wirewound inductor with a shielded design.

Design: Shielded
Mounting Type: Surface Mount
Package: Tape & reel
Size: 0.276" L x 0.272" W (7.00mm x 6.90mm)
Inductance: 760nH
Height: 0.197" (5.00mm) (Maximum)
Operating Temperature: -40°C to 150°C
Tolerance: ±20%
DC Resistance (DCR): 2.25mOhm
