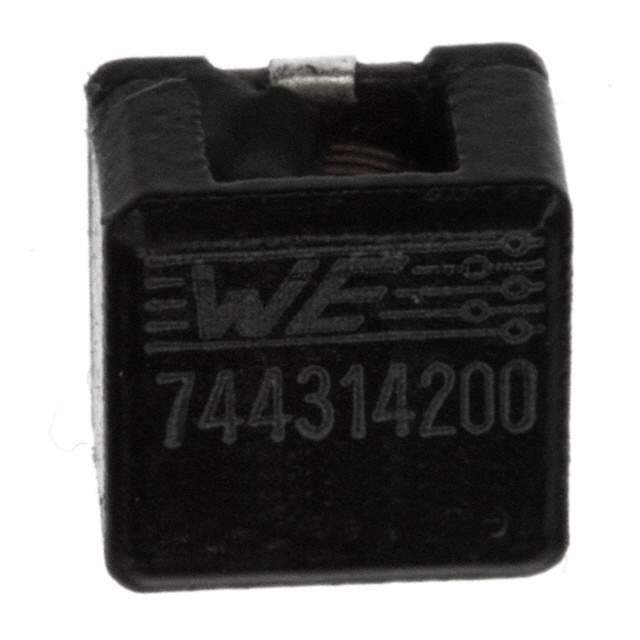

Same model may have multiple batches, images only for reference.

744314200

Name: 744314200
Brand: Wurth Electronics Inc
SKU: 857337
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	744314200
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2UH 11.5A 5.85MOHM SMD
Datasheet	744314200 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-HCI
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	2 µH
Tolerance	±20%
Current Rating (Amps)	11.5 A
Current - Saturation (Isat)	9A
Shielding	Shielded
DC Resistance (DCR)	5.85mOhm
Frequency - Self Resonant	68MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 150°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Supplier Device Package	7050
Size / Dimension	0.276" L x 0.272" W (7.00mm x 6.90mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	1,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857337-744314200
Ultra Librarian 3D Model	Ultra Librarian 744314200 CAD Model

Alternative Products

Description

The WE-HCI series is a line of fixed inductors designed for use in electronic circuits. Wurth Electronics Inc manufactures it.

Type: Wirewound
Size: 0.276" L x 0.272" W (7.00mm x 6.90mm)
Inductance: 2 µH
DC Resistance: 5.85mOhm
Shielded: Yes
Mounting Type: Surface Mount
Package: Tape & reel
Tolerance: ±20%
Operating Temperature: -40°C to 150°C
Current Rating: 11.5 A
Self-Resonant Frequency: 68MHz
