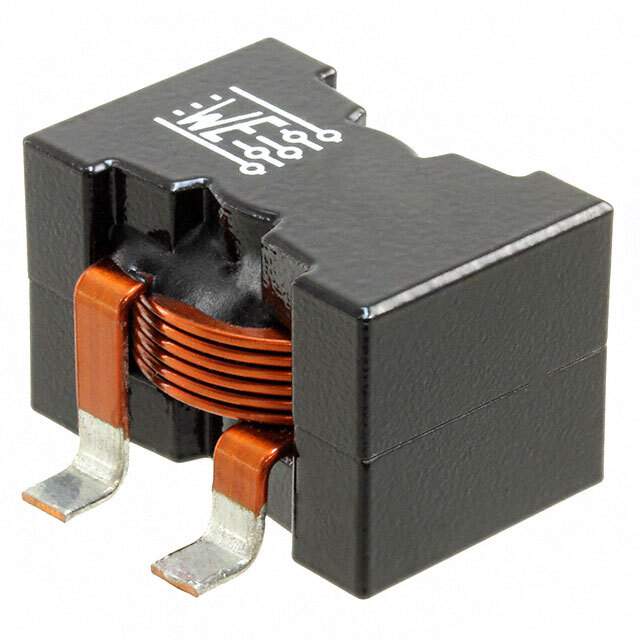

Same model may have multiple batches, images only for reference.

7443640330

Name: 7443640330
Brand: Wurth Electronics Inc
SKU: 1327714
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7443640330
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 3.3UH 30A 2.4 MOHM SMD / 3.3 µH Shielded Drum Core, Wirewound Inductor 30 A 2.4mOhm Nonstandard
Datasheet	7443640330 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Tray
Type	Drum Core, Wirewound
Material - Core	Manganese Zinc Ferrite (MnZn)
Inductance	3.3 µH
Tolerance	±15%
Current Rating (Amps)	30 A
Current - Saturation (Isat)	100A
Shielding	Shielded
DC Resistance (DCR)	2.4mOhm
Frequency - Self Resonant	25MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Supplier Device Package	2818
Size / Dimension	1.122" L x 0.768" W (28.50mm x 19.50mm)
Height - Seated (Max)	0.728" (18.50mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-5623
Standard Package	20
Win Source Part Number	1327714-7443640330
Ultra Librarian 3D Model	Ultra Librarian 7443640330 CAD Model

Alternative Products

Description

The Würth Elektronik 1327714-7443640330 is a shielded drum core, wirewound inductor with an inductance of 3.3 µH and a tolerance of ±15%.

DC Resistance: 2.4mOhm
Current Rating: 30A
Saturation Current Rating: 100A
Core Material: Manganese zinc ferrite (MnZn)
Self-Resonant Frequency: 25MHz
Standard Package: 20
Mounting: Surface mountable
Operating Temperature Range: -40°C to 125°C
Supplier Device Package: 2818 (1.122" L x 0.768" W (28.50mm x 19.50mm))
Package: Nonstandard
ROHS3 Compliant: Yes
REACH: Unaffected
