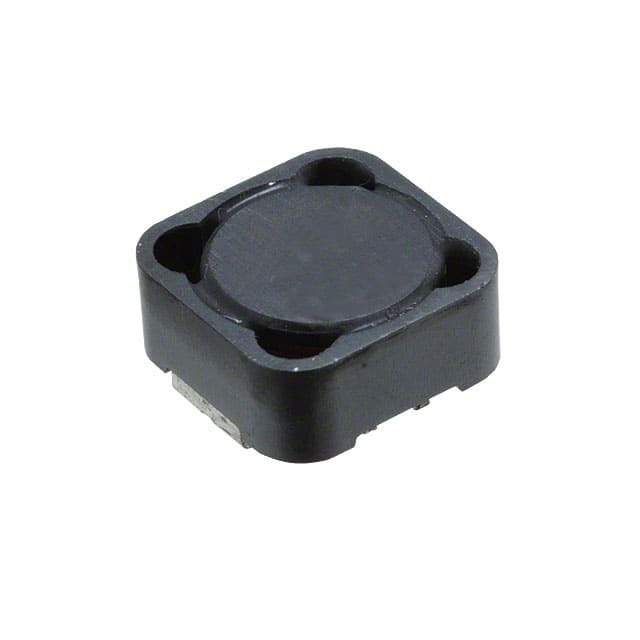

Same model may have multiple batches, images only for reference.

P1171.184NLT

Get a Quote

Part No	P1171.184NLT
Manufacturer	Pulse
Catalog	Fixed Inductors
Description	FIXED IND 180UH 1.1A 310MOHM SMD
Datasheet	P1171.184NLT Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Pulse
Series	P1171NL
Package	Tape & Reel
Product Status	Active
Type	Wirewound
Inductance	180 µH
Tolerance	±20%
Current Rating (Amps)	1.1 A
Current - Saturation (Isat)	1.1A
Shielding	Shielded
DC Resistance (DCR)	310mOhm Max
Frequency - Self Resonant	3.8MHz
Temperature Range - Operating	-40°C ~ 130°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.482" L x 0.482" W (12.24mm x 12.24mm)
Height - Seated (Max)	0.236" (6.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	929791-P1171.184NLT
Ultra Librarian 3D Model	Ultra Librarian P1171.184NLT CAD Model

Alternative Products

Description

The 929791-P1171.184NLT is a wirewound fixed inductor from the P1171NL series by Pulse.

Series: P1171NL
Type: shielded inductor
Size: 0.482" L x 0.482" W (12.24mm x 12.24mm)
Inductance: 180 µH
Tolerance: ±20%
Seated Height: 0.236" (6.00mm)
DC Resistance (DCR): 310mOhm
Operating Temperature: -40°C to 130°C
Current Rating: 1.1A
Mounting Type: surface mount
Package/Case: nonstandard
Status: active
Standard Package: 500 pieces
Frequency Self-Resonant: 3.8MHz
REACH: unaffected
