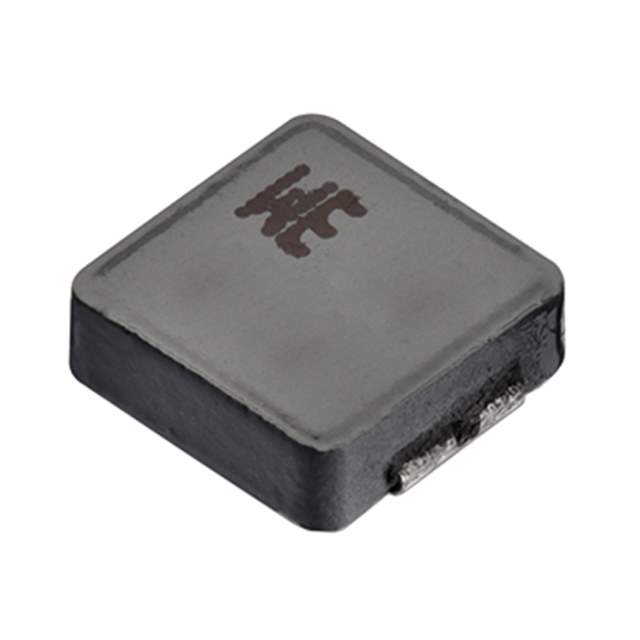

Same model may have multiple batches, images only for reference.

74437334082

Name: 74437334082
Brand: Wurth Electronics Inc
SKU: 743953
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74437334082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 1.9A 171MOHM SMD
Datasheet	74437334082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-LHMI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Iron Powder
Inductance	8.2 µH
Tolerance	±20%
Current Rating (Amps)	1.9 A
Current - Saturation (Isat)	4.5A
Shielding	Shielded
DC Resistance (DCR)	171mOhm Max
Frequency - Self Resonant	20MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	2-SMD
Supplier Device Package	5020
Size / Dimension	0.205" L x 0.205" W (5.20mm x 5.20mm)
Height - Seated (Max)	0.071" (1.80mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	743953-74437334082
Ultra Librarian 3D Model	Ultra Librarian 74437334082 CAD Model

Alternative Products

Description

The WE-LHMI series is a molded inductor with a size of 0.205" L x 0.205" W (5.20mm x 5.20mm) manufactured by Wurth Electronics Inc and is currently active in the market.

Size: 0.205" L x 0.205" W (5.20mm x 5.20mm)
Inductance: 8.2 µH (±20%)
Shielded: Yes
Maximum Seated Height: 0.071" (1.80mm)
DC Resistance (DCR): 171mOhm max
Current Rating: 1.9A
Temperature Range: -40°C to 125°C
Mounting Type: Surface Mount
Packaging: Tape & Reel (3,000 pcs)
Core Material: Iron Powder
Self-Resonant Frequency: 20MHz
