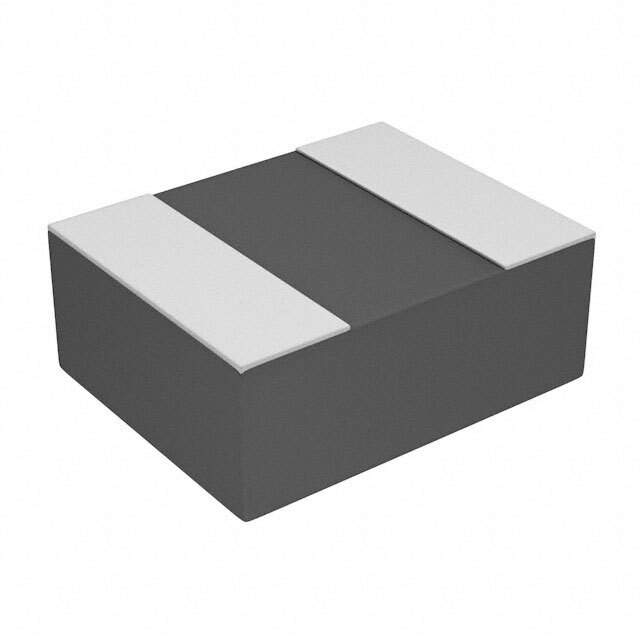

Same model may have multiple batches, images only for reference.

744383230033

Name: 744383230033
Brand: Wurth Electronics Inc
SKU: 803973
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744383230033
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 330NH 3.4A 38 MOHM SMD / WE-MAPI SMD Power Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Molded
Material - Core	Metal Composite
Inductance	330nH
Tolerance	±30%
Current Rating (Amps)	3.4A
Current - Saturation	6.2A
Shielding	Shielded
DC Resistance (DCR)	38mOhm Max
Frequency - Self Resonant	180MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100kHz
Mounting Style	SMD
Manufacturer Package	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Maximum)	0.039" (1.00mm)
Manufacturer Pack Quantity	3,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	803973-744383230033
Ultra Librarian 3D Model	Ultra Librarian 744383230033 CAD Model

Alternative Products

Description

The 803973-744383230033 is a shielded SMD molded inductor from Würth Elektronik.

Inductance: 330nH
Current Saturation: 6.2A
Tolerance: ±30%
Frequency Self-Resonant: 180MHz
Package: 1008 (2520 Metric)
Packaging: Reel
Temperature Range: -40°C to 125°C
Popularity: Medium
Supply and Demand Status: Balanced
Manufacturer Pack Quantity: 3,000
MSL Level: 1 (Unlimited)
Current Rating: 3.4A
Inductance Frequency Test: 100kHz
