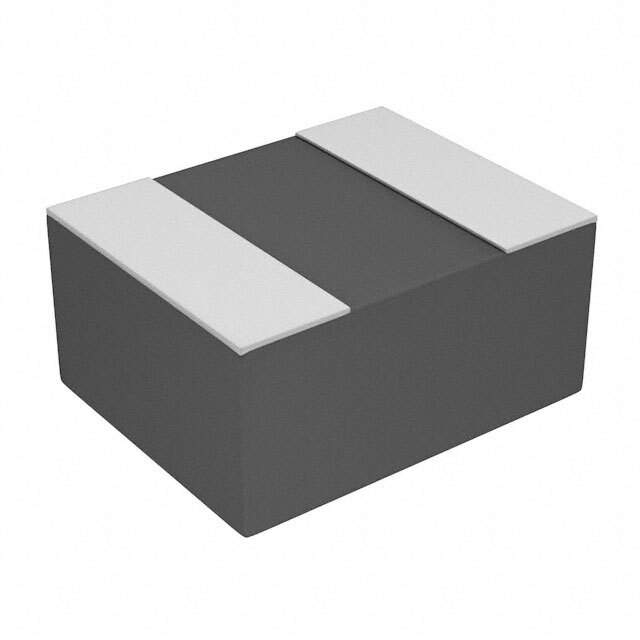

744383240056

Name: 744383240056
Brand: Wurth Electronics Inc
SKU: 857431
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744383240056
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 560NH 3.3A 49 MOHM SMD
Datasheet	744383240056 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-MAPI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	560 nH
Tolerance	±20%
Current Rating (Amps)	3.3 A
Current - Saturation (Isat)	6A
Shielding	Shielded
DC Resistance (DCR)	49mOhm Max
Frequency - Self Resonant	120MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	2512
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857431-744383240056
Ultra Librarian 3D Model	Ultra Librarian 744383240056 CAD Model

Alternative Products

Description

The WE-MAPI series is a line of molded fixed inductors designed for electronic components. Wurth Electronics Inc is the manufacturer.

Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height: 0.047" (1.20mm)
Mounting Type: Surface Mount
Package: Shielded
Inductance: 560 nH
Tolerance: ±20%
DC Resistance (DCR): 49mOhm Max
Current Rating: 3.3 A
Core Material: Metal Composite
Temperature Range: -40°C to 125°C
Frequency Self-Resonant: 120MHz
Product Status: Active
