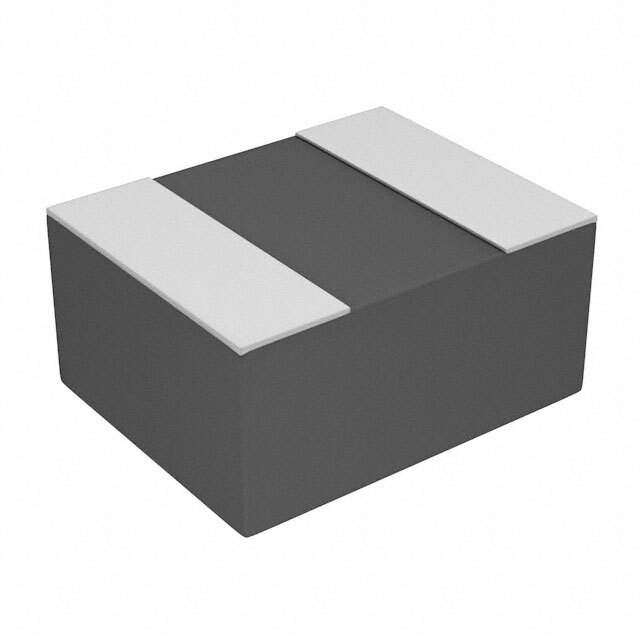

Same model may have multiple batches, images only for reference.

74438324082

Name: 74438324082
Brand: Wurth Electronics Inc
SKU: 857436
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	74438324082
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 8.2UH 800MA 720MOHM SM
Datasheet	74438324082 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-MAPI
Package	Tape & Reel
Product Status	Active
Type	Molded
Material - Core	Metal Composite
Inductance	8.2 µH
Tolerance	±20%
Current Rating (Amps)	800 mA
Current - Saturation (Isat)	1.5A
Shielding	Shielded
DC Resistance (DCR)	720mOhm Max
Frequency - Self Resonant	25MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	1008 (2520 Metric)
Supplier Device Package	2512
Size / Dimension	0.098" L x 0.079" W (2.50mm x 2.00mm)
Height - Seated (Max)	0.047" (1.20mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857436-74438324082
Ultra Librarian 3D Model	Ultra Librarian 74438324082 CAD Model

Alternative Products

Description

The WE-MAPI series is a range of molded inductors designed for use in various electronic applications. Wurth Electronics Inc is the manufacturer.

Part Number: 857436-74438324082
Size: 0.098" L x 0.079" W (2.50mm x 2.00mm)
Height: 0.047" (1.20mm)
Design: Shielded
Core Material: Metal Composite
Inductance: 8.2 µH
Tolerance: ±20%
DC Resistance (DCR): 720mOhm
Current Rating: 800mA
Operating Temperature: -40°C to 125°C
AEC-Q200: Yes
