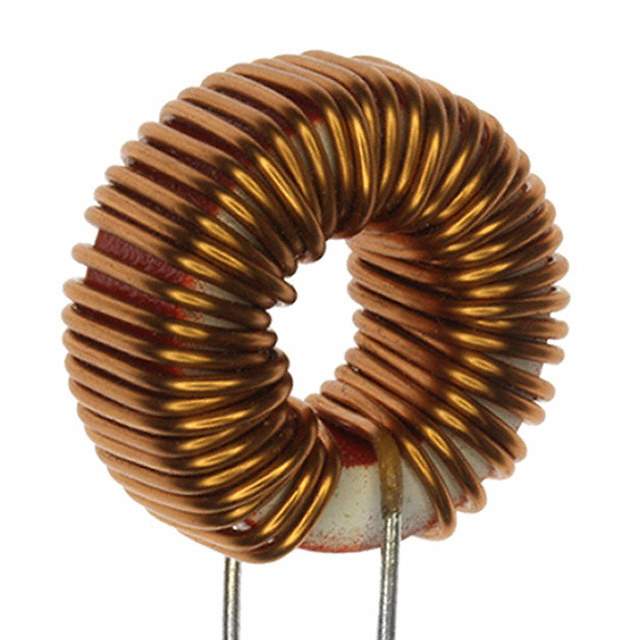

Same model may have multiple batches, images only for reference.

7447076

Name: 7447076
Brand: Wurth Electronics Inc
SKU: 857470
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	7447076
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 150UH 5A 45 MOHM TH
Datasheet	7447076 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-FI
Package	Tray
Product Status	Active
Type	Toroidal
Material - Core	Ferrite
Inductance	150 µH
Tolerance	±20%
Current Rating (Amps)	5 A
Shielding	Unshielded
DC Resistance (DCR)	45mOhm Max
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	10 kHz
Mounting Type	Through Hole
Package / Case	Radial, Vertical (Open)
Size / Dimension	1.083" Dia x 0.512" W (27.50mm x 13.00mm)
Standard Package	30 pcs
MSL Level	Not Applicable
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857470-7447076
Ultra Librarian 3D Model	Ultra Librarian 7447076 CAD Model

Alternative Products

Description

The WE-FI is a toroidal inductor from Wurth Electronics Inc.

Series: WE-FI
Size: 1.083" Dia x 0.512" W (27.50mm x 13.00mm)
Inductance: 150 µH
Shielding: Unshielded
Package: Tray
Seated Height: Not specified
DC Resistance (DCR): 45mOhm Max
Operating Temperature: -40°C to 105°C
Current Rating: 5 A
Saturation Current: Unspecified
Standard Package: 30 pcs
