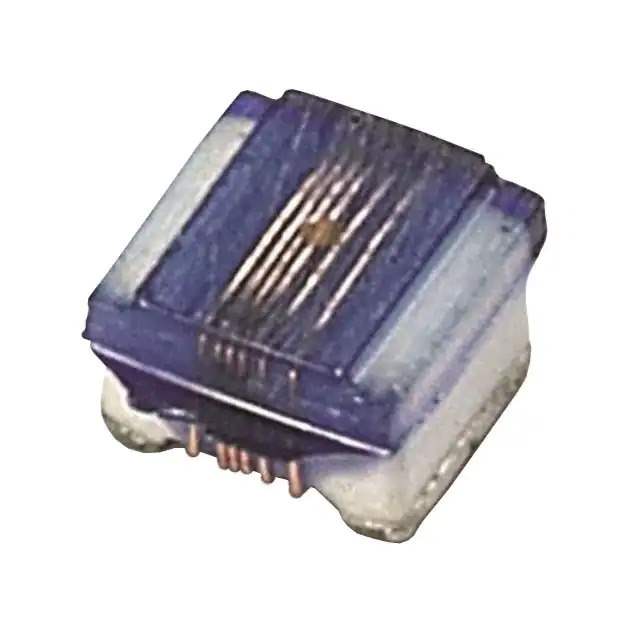

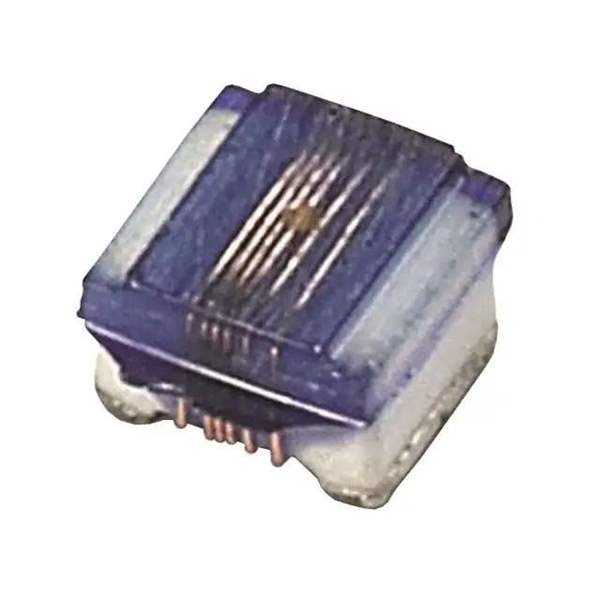

Same model may have multiple batches, images only for reference.

744761110A

Name: 744761110A
Brand: Wurth Electronics Inc
SKU: 857493
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744761110A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 10NH 700MA 130MOHM SMD
Datasheet	744761110A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	10 nH
Tolerance	±5%
Current Rating (Amps)	700 mA
Shielding	Unshielded
DC Resistance (DCR)	130mOhm Max
Q @ Freq	30 @ 250MHz
Frequency - Self Resonant	3.8GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0603 (1608 Metric)
Supplier Device Package	0603
Size / Dimension	0.063" L x 0.041" W (1.60mm x 1.05mm)
Height - Seated (Max)	0.049" (1.25mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857493-744761110A
Ultra Librarian 3D Model	Ultra Librarian 744761110A CAD Model

Alternative Products

Description

The WE-KI series is a range of fixed inductors designed for use in electronic circuits. The 857493-744761110A model is a drum core, wirewound inductor with an unshielded package from Wurth Electronics Inc.

Size: 0.063" L x 0.041" W (1.60mm x 1.05mm)
Inductance: 10nH
Maximum Seated Height: 0.049" (1.25mm)
Tolerance: ±5%
DC Resistance (DCR): 130mOhm Max
Operating Temperature Range: -40°C to 125°C
Current: 700mA
Core Material: Ceramic
Q Value: 30 @ 250MHz
Package: 0603 (1608 Metric)
