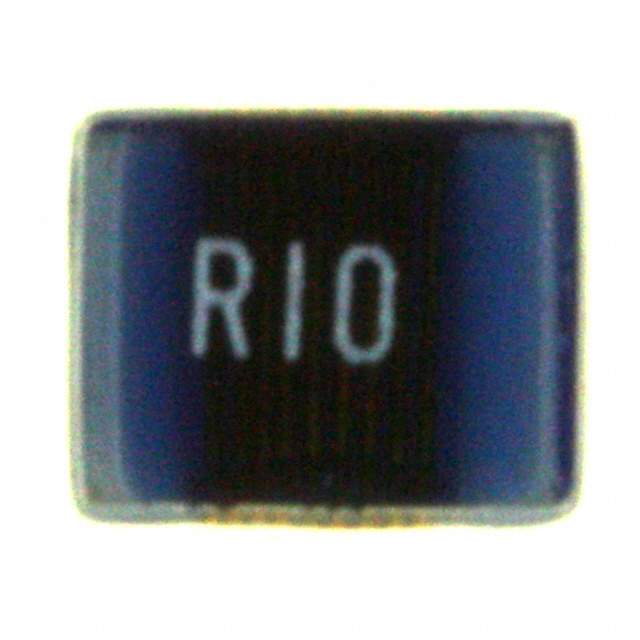

Same model may have multiple batches, images only for reference.

744762210A

Name: 744762210A
Brand: Wurth Electronics Inc
SKU: 807199
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744762210A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 100NH 1A 180 MOHM SMD / WE-KI SMD Wire Wound Ceramic Inductor
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ceramic
Inductance	100nH
Tolerance	±5%
Current Rating (Amps)	1A
Shielding	Unshielded
DC Resistance (DCR)	180mOhm Max
Q at Freq	60 at 350MHz
Frequency - Self Resonant	1.1GHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100MHz
Mounting Style	SMD
Manufacturer Package	1008 (2520 Metric)
Supplier Device Package	1008 (2520 Metric)
Dimension	0.102" L x 0.083" W (2.60mm x 2.10mm)
Height - Seated (Maximum)	0.075" (1.90mm)
Manufacturer Pack Quantity	2,000
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807199-744762210A
Ultra Librarian 3D Model	Ultra Librarian 744762210A CAD Model

Alternative Products

Description

The 744762210A is a wirewound type inductor manufactured by Würth Elektronik.

Core Material: Ceramic
Supplier Device Package: 1008 (2520 Metric)
Inductance: 100nH
Tolerance: ±5%
DC Resistance (DCR): 180mOhm Max
Frequency - Self-Resonant: 1.1GHz
