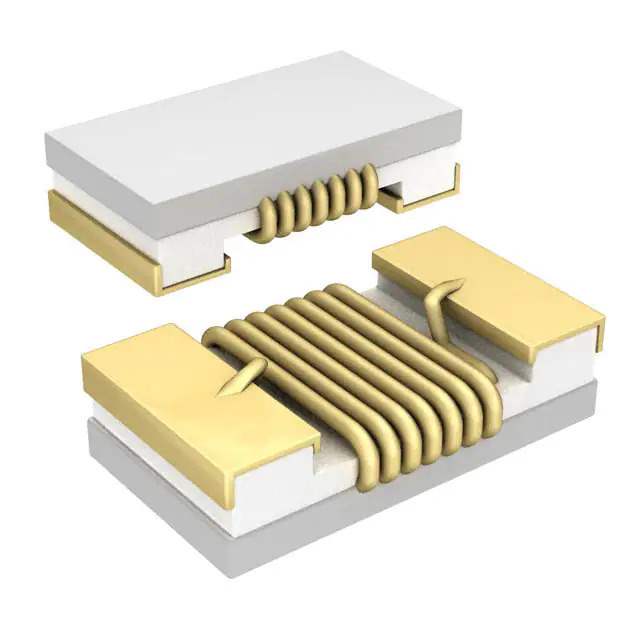

Same model may have multiple batches, images only for reference.

744765062A

Name: 744765062A
Brand: Wurth Electronics Inc
SKU: 857513
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744765062A
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 6.2NH 760MA 83MOHM SMD
Datasheet	744765062A Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-KI
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ceramic
Inductance	6.2 nH
Tolerance	±5%
Current Rating (Amps)	760 mA
Shielding	Unshielded
DC Resistance (DCR)	83mOhm Max
Q @ Freq	23 @ 250MHz
Frequency - Self Resonant	5.8GHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	250 MHz
Mounting Type	Surface Mount
Package / Case	0402 (1005 Metric)
Supplier Device Package	0402 (1005 Metric)
Size / Dimension	0.039" L x 0.022" W (1.00mm x 0.55mm)
Height - Seated (Max)	0.024" (0.60mm)
Standard Package	3,000 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Win Source Part Number	857513-744765062A
Ultra Librarian 3D Model	Ultra Librarian 744765062A CAD Model

Alternative Products

Description

The 857513-744765062A is a drum core, wirewound inductor from the WE-KI series by Wurth Electronics Inc.

Inductance: 6.2 nH
Tolerance: ±5%
DC Resistance (DCR): 83mOhm Max
Current Rating: 760 mA
Operating Temperature: -40°C to 125°C
AEC-Q200 Rated: Yes
Mounting Type: Surface Mount
Package: 0402 (1005 Metric)
Size: 0.039" L x 0.022" W (1.00mm x 0.55mm)
