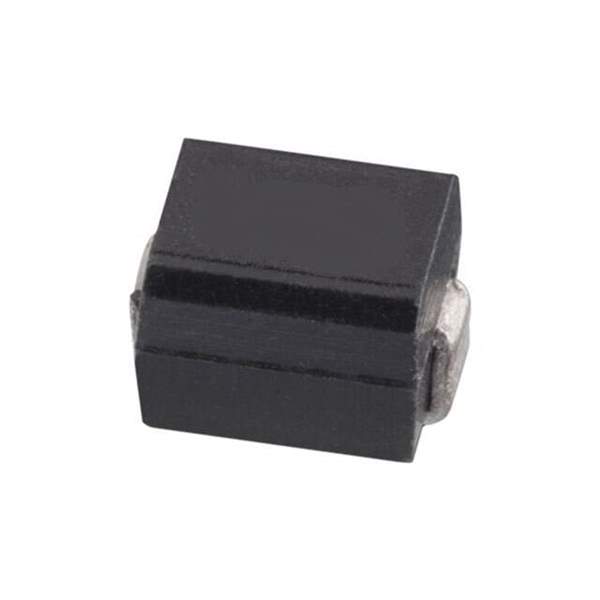

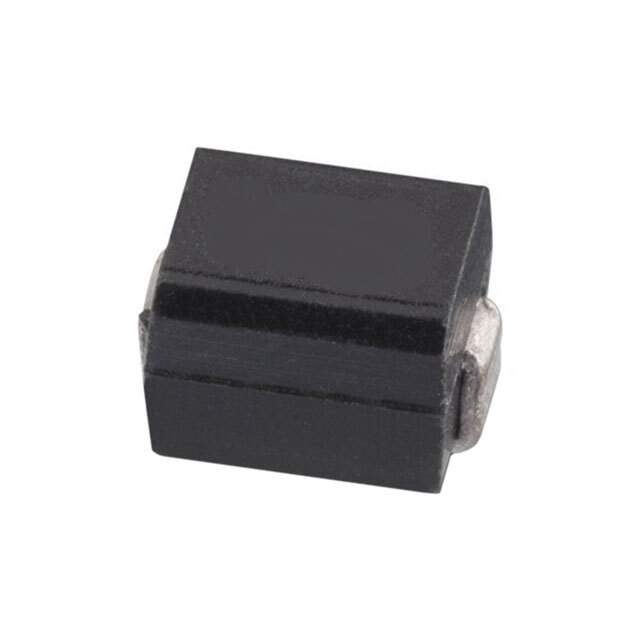

Same model may have multiple batches, images only for reference.

744766118

Name: 744766118
Brand: Wurth Electronics Inc
SKU: 1329279
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744766118
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 18UH 190MA 2.8 OHM SMD / 18 µH Unshielded Drum Core, Wirewound Inductor 190 mA 2.8Ohm Max 1812 (4532 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	18 µH
Tolerance	±10%
Current Rating (Amps)	190 mA
Shielding	Unshielded
DC Resistance (DCR)	2.8Ohm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	21MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting	Surface Mount
Case / Package	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.142" (3.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-744766118TR
Standard Package	500
Win Source Part Number	1329279-744766118
Ultra Librarian 3D Model	Ultra Librarian 744766118 CAD Model

Alternative Products

Description

The 1329279-744766118 is a surface mount fixed inductor from Würth Elektronik.

Type: Drum core and wirewound
Shielding: Unshielded
Size: 0.177 inches L x 0.126 inches W (4.50mm x 3.20mm)
Inductance: 18μH
Height: 0.142 inches
Standard Package: 500 inductors
Packaging: Reel-TR
Tolerance: ±10%
Core: Ferrite
Q @ Freq: 50 @ 2.52MHz
Frequency of Self-Resonant: 21MHz
DC Resistance (DCR): 2.8Ohm Max
Supplier Device Package: 1812
Temperature Range: -40°C to 105°C
Case/Package: 1812 (4532 Metric)
