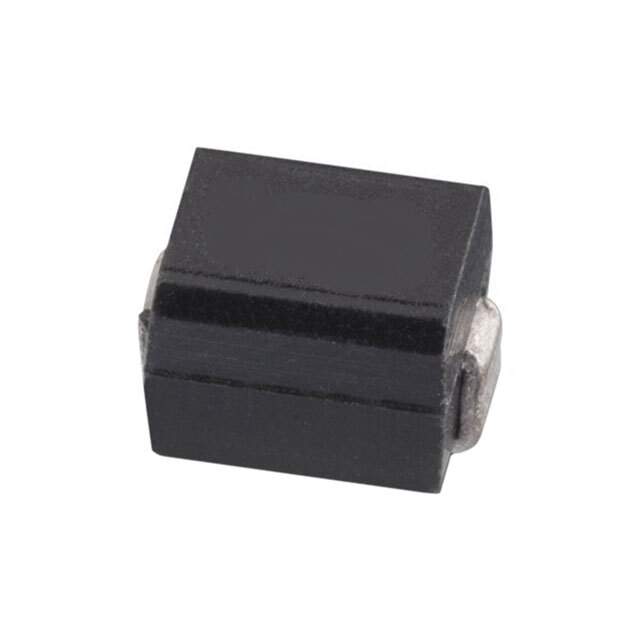

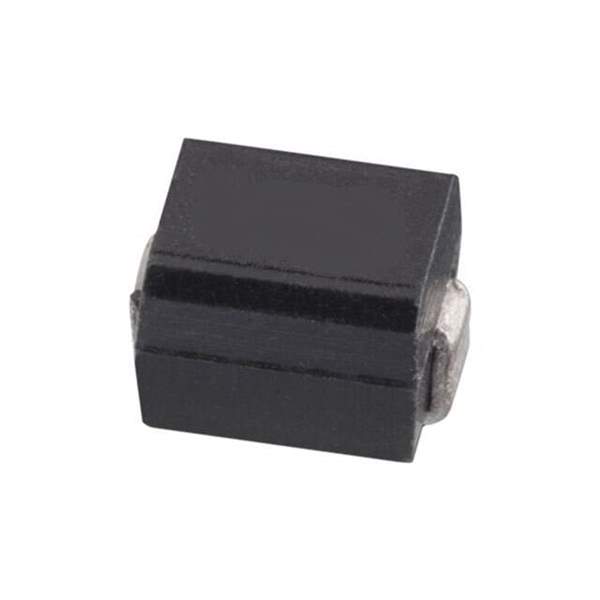

Same model may have multiple batches, images only for reference.

744766147

Name: 744766147
Brand: Wurth Electronics Inc
SKU: 1327587
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744766147
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 47UH 140MA 5 OHM SMD / 47 µH Unshielded Drum Core, Wirewound Inductor 140 mA 5Ohm Max 1812 (4532 Metric)
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	47 µH
Tolerance	±10%
Current Rating (Amps)	140 mA
Shielding	Unshielded
DC Resistance (DCR)	5Ohm Max
Q @ Freq	50 @ 2.52MHz
Frequency - Self Resonant	12MHz
Temperature Range - Operating	-40°C ~ 105°C
Inductance Frequency - Test	2.52 MHz
Mounting	Surface Mount
Case / Package	1812 (4532 Metric)
Supplier Device Package	1812
Size / Dimension	0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max)	0.142" (3.60mm)
RoHS Status	ROHS3 Compliant
MSL Level	3 (168 Hours)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.8000
Other Part Number	732-744766147TR,732-744766147CT,732-744766147DKR
Standard Package	500
Win Source Part Number	1327587-744766147
Ultra Librarian 3D Model	Ultra Librarian 744766147 CAD Model

Alternative Products

Description

The Würth Elektronik fixed inductor component is a drum core, wirewound type.

Shielding: Shielded
Size/Dimension: 0.177 inches L x 0.126 inches W (4.50mm x 3.20mm)
Inductance: 47 µH
Tolerance: ±10%
Core Material: Ferrite
Q @ Freq: 50 @ 2.52MHz
Frequency Self-Resonant: 12MHz
DC Resistance (DCR): 5Ohm Max
Current Rating (Amps): 140 mA
Current Saturation (Isat): - amperes
Package: Reel - TR
Mounting: Surface Mount
ECCN: EAR99
Compliance: REACH unaffected
HTSUS: 8504.50.8000
