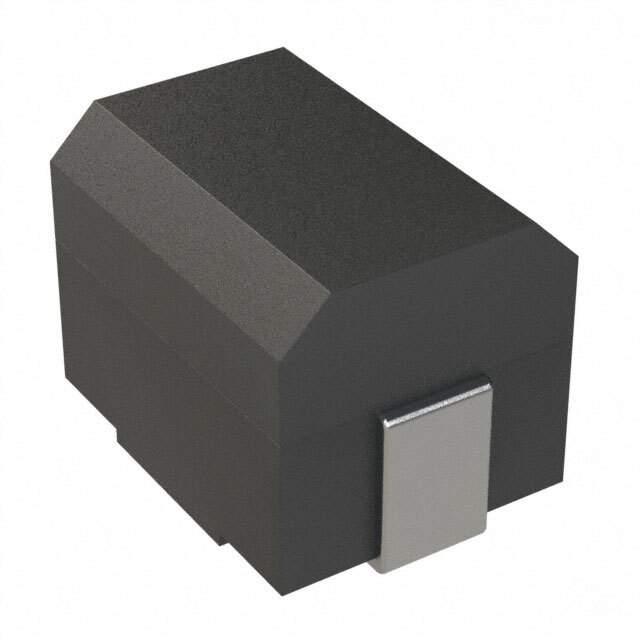

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-GF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Ferrite
Inductance 470 µH
Tolerance ±10%
Current Rating (Amps) 62 mA
Shielding Unshielded
DC Resistance (DCR) 26Ohm Max
Q @ Freq 40 @ 796kHz
Frequency - Self Resonant 4.6MHz
Temperature Range - Operating -40°C ~ 105°C
Inductance Frequency - Test 796 kHz
Mounting Type Surface Mount
Package / Case 1812 (4532 Metric)
Supplier Device Package 1812
Size / Dimension 0.177" L x 0.126" W (4.50mm x 3.20mm)
Height - Seated (Max) 0.142" (3.60mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.8000
Win Source Part Number 857517-74476624
Ultra Librarian 3D Model Ultra Librarian 74476624 CAD Model

Description

The WE-GF series inductor is a drum core, wirewound fixed inductor designed for use in electronic circuits.

  • Size: 0.177" L x 0.126" W (4.50mm x 3.20mm)
  • Height: 0.142" (3.60mm)
  • Mounting Type: Surface Mount
  • Inductance: 470µH
  • Tolerance: ±10%
  • DC Resistance (DCR): 26Ohm maximum
  • Core Material: Ferrite
  • Self-Resonant Frequency: 4.6MHz
  • Operating Temperature: -40°C to 105°C
  • Current Rating: 62mA
