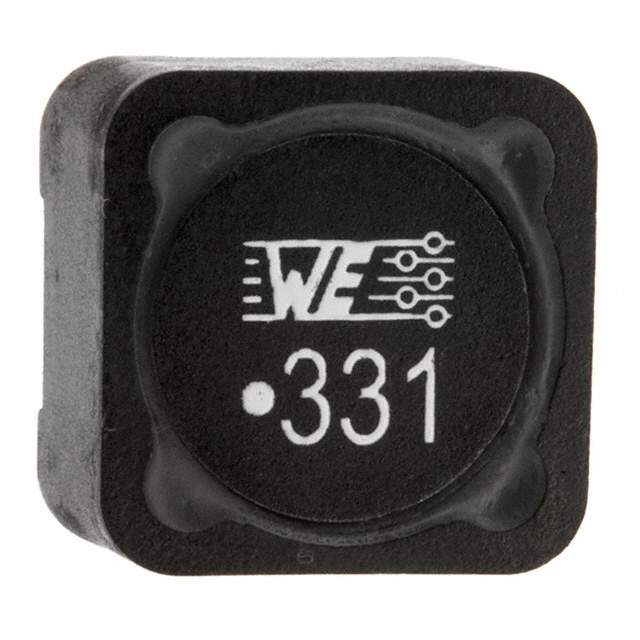

Same model may have multiple batches, images only for reference.

744770233

Name: 744770233
Brand: Wurth Electronics Inc
SKU: 857527
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744770233
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 330UH 1.1A 640MOHM SMD
Datasheet	744770233 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	330 µH
Tolerance	±20%
Current Rating (Amps)	1.1 A
Current - Saturation (Isat)	1.1A
Shielding	Shielded
DC Resistance (DCR)	640mOhm Max
Frequency - Self Resonant	3MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	1 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.472" L x 0.472" W (12.00mm x 12.00mm)
Height - Seated (Max)	0.315" (8.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857527-744770233
Ultra Librarian 3D Model	Ultra Librarian 744770233 CAD Model

Alternative Products

Description

The WE-PD series is a range of fixed inductors designed for use in electronic circuits.

Core Construction: Drum core, wirewound
Shielding: Shielded
Size: 0.472" L x 0.472" W (12.00mm x 12.00mm)
Inductance: 330 μH
Height: 0.315" (8.00mm)
Tolerance: ±20%
DC Resistance (DCR): 640mOhm Max
Operating Temperature: -40°C to 125°C
Current: 1.1A
Core Material: Ferrite
Self-Resonant Frequency: 3MHz
AEC-Q200 Rated: Yes
Package: Nonstandard
