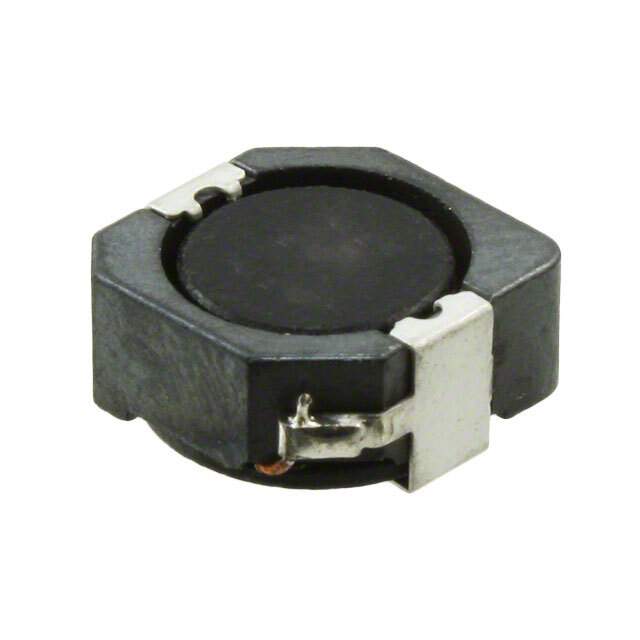

7447714101

Name: 7447714101
Brand: Wurth Electronics Inc
SKU: 857544
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447714101
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 100UH 1.5A 198MOHM SMD
Datasheet	7447714101 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes - Fixed Inductors
Mfr	Wurth Electronics Inc
Series	WE-PD Performance
Package	Tape & Reel
Product Status	Active
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	100 µH
Tolerance	±20%
Current Rating (Amps)	1.5 A
Current - Saturation (Isat)	1.8A
Shielding	Shielded
DC Resistance (DCR)	198mOhm Max
Frequency - Self Resonant	5.9MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting Type	Surface Mount
Package / Case	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.197" (5.00mm)
Standard Package	500 pcs
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Win Source Part Number	857544-7447714101
Ultra Librarian 3D Model	Ultra Librarian 7447714101 CAD Model

Alternative Products

Description

The WE-PD Performance series is a drum core, wirewound inductor designed for high-performance applications.

Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Height: 0.197" (5.00mm) max seated
Inductance: 100 µH
DC Resistance (DCR): 198mOhm max
Shielding: Shielded
Packaging: Tape & Reel
Operating Temperature: -40°C to 125°C
Current Rating: 1.5 A
Saturation Current: 1.8A
Manufacturer: Wurth Electronics Inc
Ratings: AEC-Q200
Status: Active
