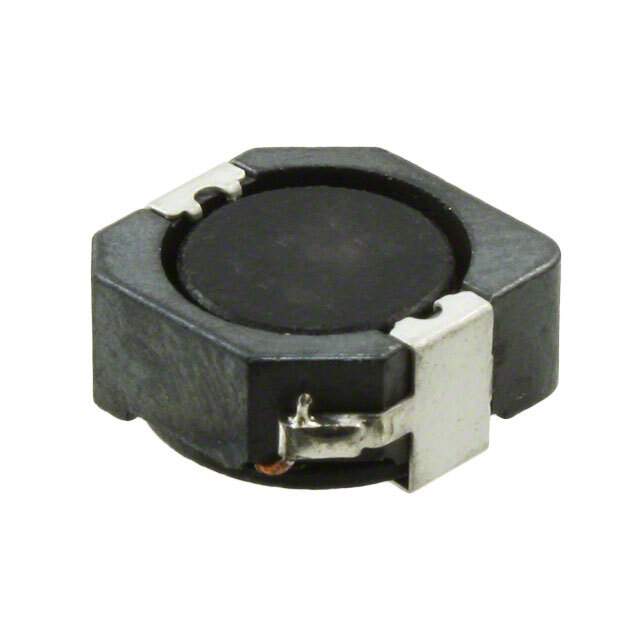

7447714560

Name: 7447714560
Brand: Wurth Electronics Inc
SKU: 1327665
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447714560
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 56UH 2A 121 MOHM SMD / 56 µH Shielded Drum Core, Wirewound Inductor 2 A 121mOhm Max Nonstandard
Datasheet	7447714560 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Inductors, Coils, Chokes>Fixed Inductors
Manufacturer	Würth Elektronik
Packaging	Reel - TR
Type	Drum Core, Wirewound
Material - Core	Ferrite
Inductance	56 µH
Tolerance	±20%
Current Rating (Amps)	2 A
Current - Saturation (Isat)	2.3A
Shielding	Shielded
DC Resistance (DCR)	121mOhm Max
Frequency - Self Resonant	8.6MHz
Ratings	AEC-Q200
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	100 kHz
Mounting	Surface Mount
Case / Package	Nonstandard
Size / Dimension	0.394" L x 0.394" W (10.00mm x 10.00mm)
Height - Seated (Max)	0.197" (5.00mm)
RoHS Status	ROHS3 Compliant
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-4040-2,732-4040-1,732-4040-6
Standard Package	500
Win Source Part Number	1327665-7447714560
Ultra Librarian 3D Model	Ultra Librarian 7447714560 CAD Model

Alternative Products

Description

The 1327665-7447714560 is a fixed inductor manufactured by Würth Elektronik.

Core Type: Drum Core, Wirewound
Shielding: Shielded
Size: 0.394" L x 0.394" W (10.00mm x 10.00mm)
Inductance: 56 µH
Tolerance: ±20%
Temperature Range: -40°C to 125°C
AEC-Q200 Rated: Yes
Current Rating: 2A
Packaging: Reel (500 units per package)
ECCN: EAR99
REACH: Unaffected
