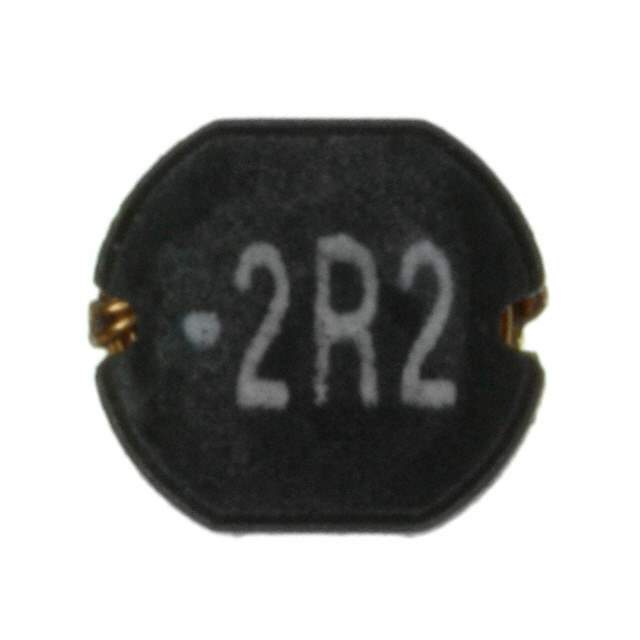

Same model may have multiple batches, images only for reference.

7447745022

Name: 7447745022
Brand: Wurth Electronics Inc
SKU: 857555
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	7447745022
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 2.2UH 3.6A 36 MOHM SMD
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors
Estimated Pruduction Lead Time	21 Weeks
Features	Unshielded Wirewound Inductor 36mOhm Max Nonstandard
Manufacturer	Wurth Electronics Inc
Series	WE-PD2
Package	Reel - TR
Operating Temperature Range	-40°C ~ 125°C
Mounting	Surface Mount
Package	Nonstandard
MSL Level	1 (Unlimited)
REACH Status	REACH Unaffected
ECCN	EAR99
HTSUS	8504.50.4000
Other Part Number	732-1313-1, 732-1313-2
Quantity per package	2000
Popularity	Medium
Supply and Demand Status	Limited
Win Source Part Number	857555-7447745022
Ultra Librarian 3D Model	Ultra Librarian 7447745022 CAD Model

Alternative Products

Description

The WE-PD2 is an unshielded wirewound inductor from Wurth Electronics Inc.

Resistance: 36mOhm max
Operating Temperature: -40°C to 125°C
Series: WE-PD
Popularity: Medium
Category: Inductor
