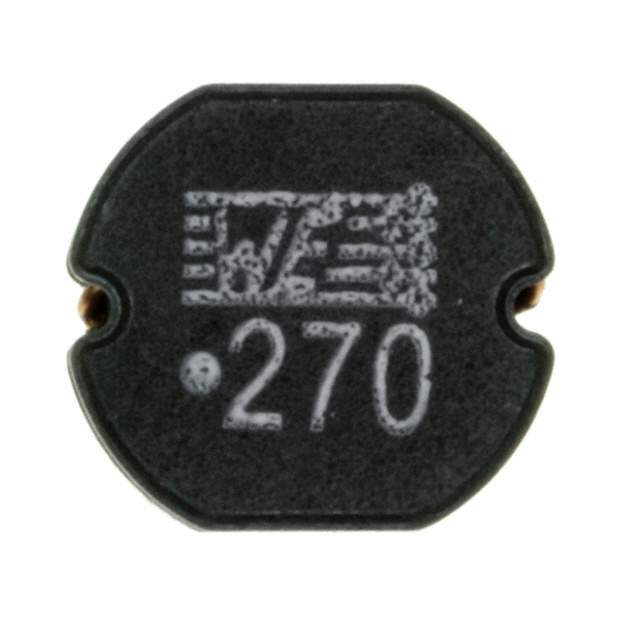

Same model may have multiple batches, images only for reference.

744776127

Name: 744776127
Brand: Wurth Electronics Inc
SKU: 807815
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744776127
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	FIXED IND 27UH 1.95A 110 MOHM / POWER-CHOKE WE-PD2
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Würth Elektronik
Packaging	Reel
Type	Wirewound
Material - Core	Ferrite
Inductance	27μH
Tolerance	±20%
Current Rating (Amps)	1.95A
Current - Saturation	1.98A
Shielding	Unshielded
DC Resistance (DCR)	110mOhm Max
Frequency - Self Resonant	15MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Dimension	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Maximum)	0.232" (5.90mm)
Manufacturer Pack Quantity	500
MSL Level	1 (Unlimited)
Popularity	Medium
Supply and Demand Status	Balance
Win Source Part Number	807815-744776127
Ultra Librarian 3D Model	Ultra Librarian 744776127 CAD Model

Alternative Products

Description

This Würth Elektronik wirewound inductor with an inductance of 27μH is a high-performance electronic component.

Packaging: Reel
Mounting Style: SMD
Shielding: Unshielded
Core Material: Ferrite
Saturation Current: 1.98A
Self-Resonant Frequency: 15MHz
DC Resistance: 110mOhm Max
Temperature Range: -40°C to 125°C
Dimension: 0.394" L x 0.354" W (10.00mm x 9.00mm)
Manufacturer Package: Nonstandard
Height: 0.232" (5.90mm)
Popularity: Yes
Supply and Demand Status: Balance
Current Rating: 1.95A
Inductance Frequency: 10kHz
