Same model may have multiple batches, images only for reference.

744776133

Name: 744776133
Brand: Wurth Electronics Inc
SKU: 547389
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	744776133
Manufacturer	Wurth Electronics Inc
Catalog	Fixed Inductors
Description	POWER-CHOKE WE-PD2 \| FIXED IND 33UH 1.78A 120 MOHM
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Inductors, Coils, Chokes
Manufacturer	Wurth Electronics Inc.
Packaging	Cut Tape (CT)
Type	Wirewound
Material - Core	Ferrite
Inductance	33μH
Tolerance	±20%
Current Rating (Amps)	1.78A
Current - Saturation	1.89A
Shielding	Unshielded
DC Resistance (DCR)	120mOhm Max
Frequency - Self Resonant	13MHz
Temperature Range - Operating	-40°C ~ 125°C
Inductance Frequency - Test	10kHz
Mounting Style	SMD
Manufacturer Package	Nonstandard
Parts Dimension	0.394" L x 0.354" W (10.00mm x 9.00mm)
Height - Seated (Maximum)	5.90mm
Manufacturer Pack Quantity	1
MSL Level	1 (Unlimited)
Win Source Part Number	1130077-744776133
Manufacturer Homepage	www.we-online.com
Popularity	Medium
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian 744776133 CAD Model

Alternative Products

Description

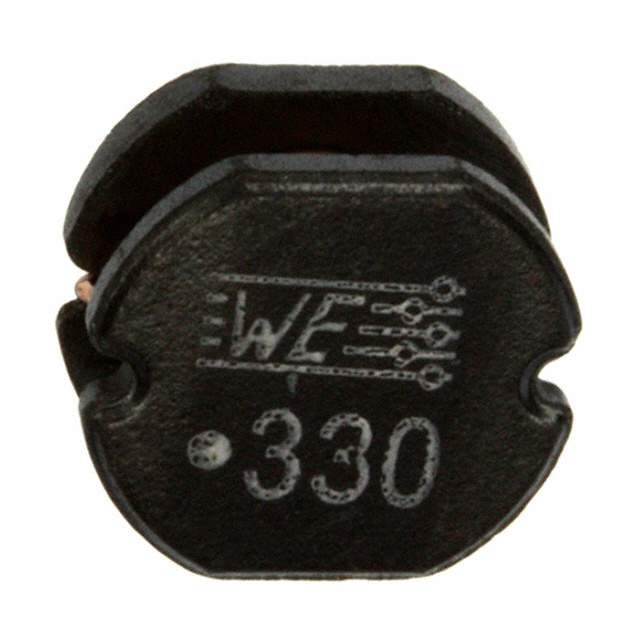

The 1130077-744776133 is a wirewound inductor with 33μH inductance and ±20% tolerance.

Inductance: 33μH
Tolerance: ±20%
Core Material: Ferrite
Saturation Current Max: 1.89A
Operating Temperature: -40°C to 125°C
Self-Resonant Frequency: 13MHz
Packaging: Nonstandard
Height: 5.90mm
Manufacturer: Wurth Electronics Inc.
ECCN: EAR99
