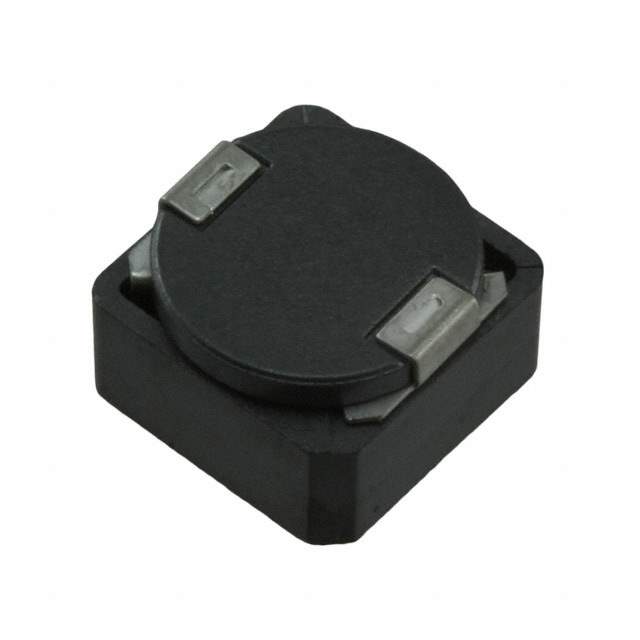

7447797820 Real Image
Same model may have multiple batches, images only for reference.

7447797820

Part No 7447797820
Manufacturer Wurth Electronics Inc
Catalog Fixed Inductors
Description FIXED IND 8.2UH 5.05A 28.6 MOHM
Datasheet
7447797820 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Inductors, Coils, Chokes
Manufacturer Wurth Electronics Inc.
Packaging Reel - TR
Status Active
Type Wirewound
Material - Core Ferrite
Inductance 8.2μH
Tolerance ±20%
Current Rating 5.05A
Current - Saturation 5.8A
DC Resistance (DCR) 28.6 mOhm Max
Frequency - Self Resonant 28MHz
Temperature Range - Operating -40°C to 150°C
Frequency - Test 100kHz
Mounting SMD (SMT)
Height - Seated (Max) 0.177" (4.50mm)
Win Source Part Number 057412-7447797820
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 7447797820 CAD Model

Description

Product Description for 7447797820

The 7447797820 is a high-efficiency electronic component created for modern applications. This device is characterized by its innovative design and excellent operational capabilities.

  • Applications:
    • Embedded systems
    • Wireless communication devices
    • Energy-saving applications
    • Audio and video equipment
  • Features and Benefits:
    • Advanced integration technology
    • High energy efficiency
    • Dynamic performance
    • Optimal heat dissipation
    • Environmentally conscious manufacturing
  • Additional Details:

    The 7447797820 sets the benchmark for quality and efficiency, designed to meet the requirements of cutting-edge electronic systems.
