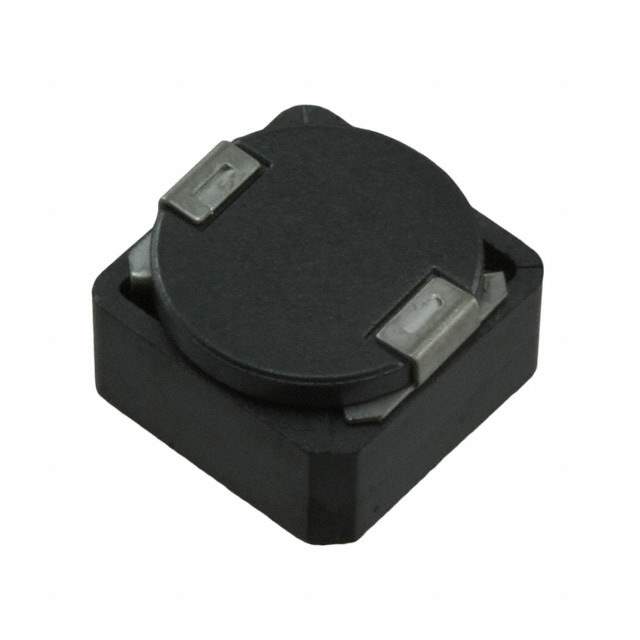

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Inductors, Coils, Chokes - Fixed Inductors
Mfr Wurth Electronics Inc
Series WE-PDF
Package Tape & Reel
Product Status Active
Type Drum Core, Wirewound
Material - Core Nickel Zinc Ferrite (NiZn)
Inductance 11 µH
Tolerance ±20%
Current Rating (Amps) 6.9 A
Current - Saturation (Isat) 5.3A
Shielding Shielded
DC Resistance (DCR) 15.8mOhm Max
Frequency - Self Resonant 25MHz
Temperature Range - Operating -40°C ~ 150°C
Inductance Frequency - Test 100 kHz
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.402" L x 0.402" W (10.20mm x 10.20mm)
Height - Seated (Max) 0.252" (6.40mm)
Standard Package 500 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Win Source Part Number 857591-7447798111
Ultra Librarian 3D Model Ultra Librarian 7447798111 CAD Model

Description

The WE-PDF series is a range of fixed inductors designed for use in electronic circuits.

  • Construction: Drum core, wirewound
  • Shielded: Shielded
  • Size: 0.402" L x 0.402" W (10.20mm x 10.20mm)
  • Height: 0.252" (6.40mm)
  • Inductance: 11 µH
  • Tolerance: ±20%
  • DC Resistance (DCR): 15.8mOhm maximum
  • Current Rating: 6.9A
  • Temperature Range: -40°C to 150°C
  • Package: Tape & Reel (500 pieces per package)
  • Core Material: Nickel zinc ferrite (NiZn)
  • Self-Resonant Frequency: 25MHz
