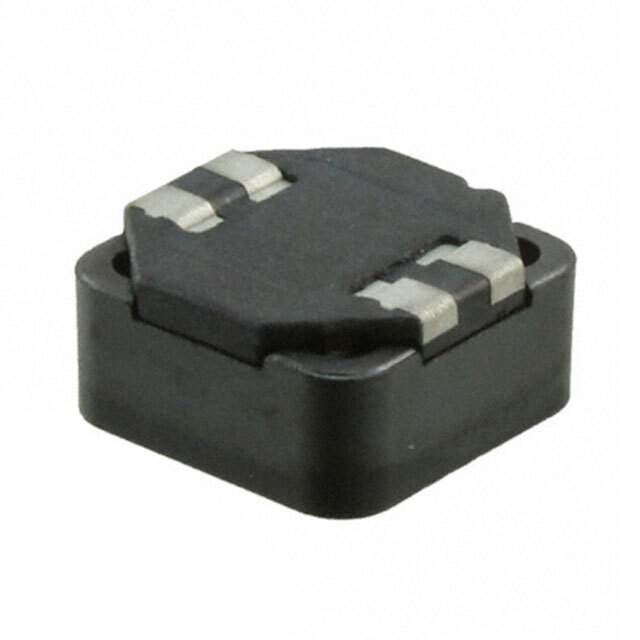

744871100 Real Image1 744871100 Real Image2
Same model may have multiple batches, images only for reference.
744871100 Real Image1 744871100 Real Image2
744871100 Real Image1 744871100 Real Image2
Same model may have multiple batches, images only for reference.

744871100

Part No 744871100
Manufacturer Wurth Electronics Inc
Catalog Arrays, Signal Transformers
Description INDUCT ARRAY 2 COIL 10UH SMD / Shielded 2 Coil Inductor Array 40 µH Inductance - Connected in Series 10 µH Inductance - Connected in Parallel 50mOhm Max DC Resistance (DCR) - Parallel 2 A Nonstandard
Datasheet
744871100 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Inductors, Coils, Chokes>Arrays, Signal Transformers
Mfr Wurth Electronics Inc
Series WE-DD
Package Tape & Reel
Number of Coils 2
Inductance - Connected In Parallel 10 µH
Inductance - Connected In Series 40 µH
Tolerance ±20%
Current Rating - Parallel 2 A
Current Rating - Series 1 A
Current Saturation - Parallel 5 A
Current Saturation - Series 2.5 A
DC Resistance (DCR) - Parallel 50mOhm Max
DC Resistance (DCR) - Series -
Shielding Shielded
Ratings -
Temperature Range - Operating -40°C ~ 125°C
Mounting Type Surface Mount
Package / Case Nonstandard
Size / Dimension 0.492" L x 0.492" W (12.50mm x 12.50mm)
Height 0.256" (6.50mm)
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.50.4000
Standard Package 500 pcs
Win Source Part Number 1381132-744871100
Ultra Librarian 3D Model Ultra Librarian 744871100 CAD Model

Description

The WE-DD series from Wurth Electronics Inc is a high-quality array of signal transformers designed for various electronic applications.

  • Package: Tape & Reel
  • Size: 0.492" L x 0.492" W (12.50mm x 12.50mm)
  • Number of Coils: 2
  • Inductance (Series): 40 µH
  • Inductance (Parallel): 10 µH
  • Current Rating (Series): 1 A
  • Current Rating (Parallel): 2 A
  • Height: 0.256" (6.50mm)
  • DC Resistance (DCR) (Parallel): 50mOhm max
  • Operating Temperature: -40°C to 125°C
